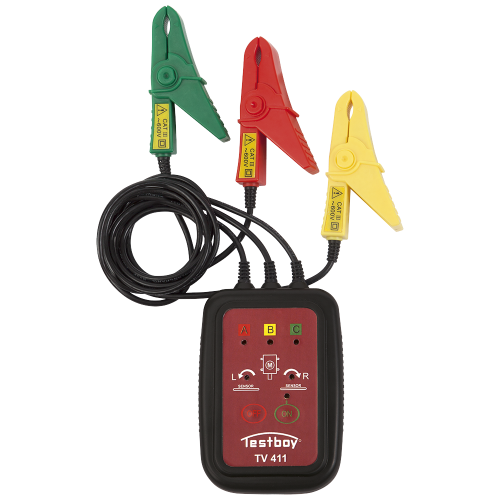

TESTBOY - Non-contact rotating field and rotary tester Testboy TV 411

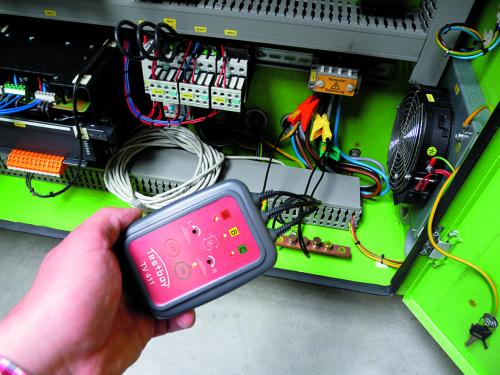

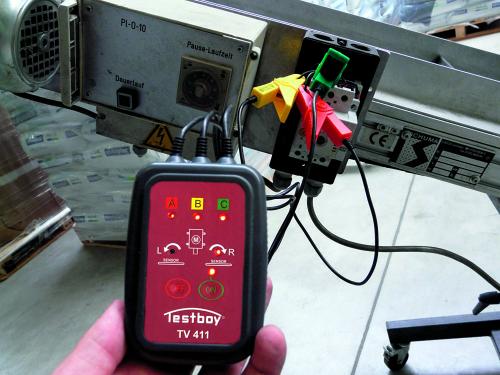

The non-contact rotating field and rotary tester TV 411 indicates the phase sequence and direction of the rotating field of the external conductor and is especially suitable for service tasks in engine installations and multi-phase networks. The non-contact measurement with the coloured insulated terminals accelerates the service application and minimizes the risk of contacting energized electrically active conductors. The integrated rotary tester also determines by no contact by measuring the changing magnetic field of the direction of rotation of the engine shaft.
How you benefit
Non-contact measurement of the phase sequence and rotating field
Integrated rotary tester
Quick recording LED display
Specifications
Technical Data TESTBOY TV 411
Display: Optical, 6 LEDs
Voltage Test: 70 – 600 V AC
Test cable length: 50 cm
Frequency Response: 50/60 Hz
Housing: ABS plastic
Dimension: 110 x 70 x 30 mm
Weight: 220 g (incl. batteries)
Scope of delivery: Operating instructions, carrying case
