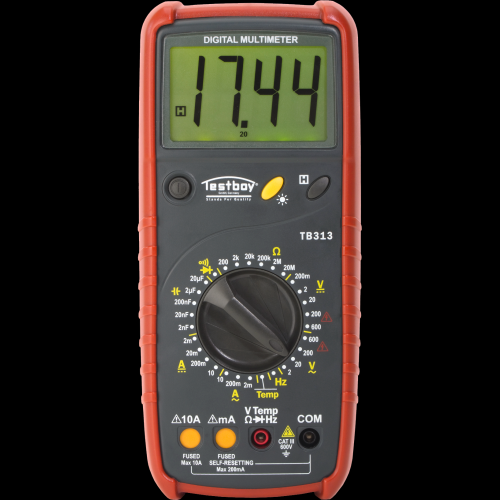

TESTBOY - Digital multimeter with automatic measuring range protection TESTBOY 313
The Testboy 313 is particularly safe when using. Due to automatic protection of the measurement area, erroneous operation is impossible. In addition, the digital multimeter has an easily legible LC display with backlighting.
How you benefit

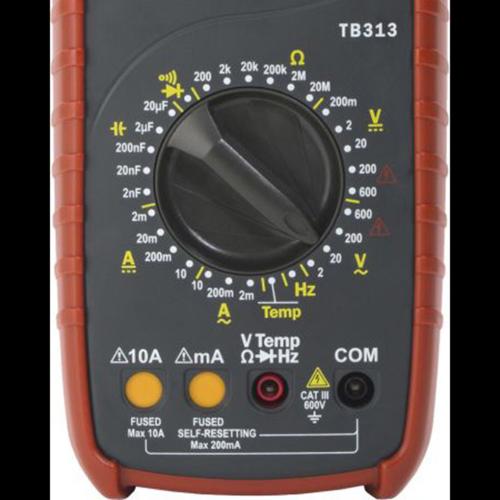

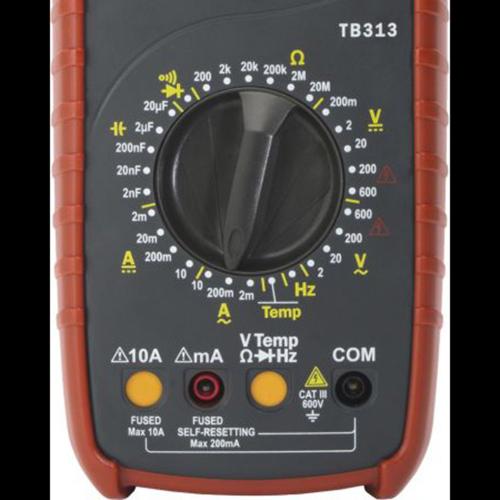

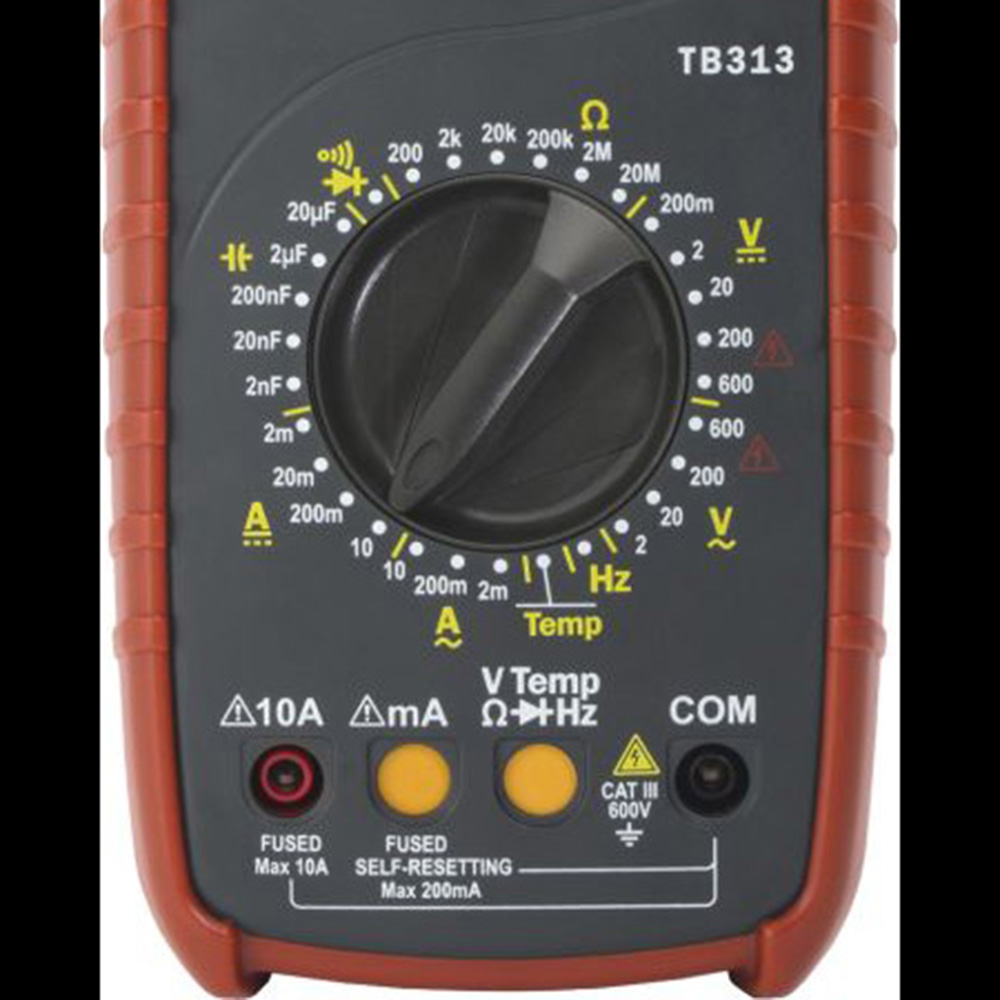

Automatic measuring range protection
Large LCD with backlighting
Temperature measurement
Specifications
Technical Data TESTBOY 313
Display: 37 mm large, illuminated LCD
Overload Category: CAT III 600 V
Diode Test: Yes
Standard: IEC/EN 61010-1, IEC/EN 61010-2-033
Dimensions: 200 × 89 × 38 mm
AC Voltage: 2 V, 20 V, 200 V ; ±1,0 %, ±5 Digits
600 V ; ±1,2 %, ±5 Digits
AC Current: 2 mA, 20 mA ; ±1,0 %, ±5 Digits
200 mA ; ±1,5 %, ±3 Digits
10 A ; ±2,0 %, ±8 Digits
Operating temperature range: 0–40 °C (32–104 °F)
DC Voltage: 200 mV, 2 V, 20 V, 200 V ; ±0,5 %, ±3 Digits
600 V ; ±0,8 %, ±5 Digits
DC Current: 2 mA, 20 mA ; ±1,0 %, ±3 Digits
200 mA ; ±1,5 %, ±3 Digits
10 A ; ±2,0 %, ±5 Digits
Continuity Test: Yes
Input impedance: > 7.5 MΩ, type 10 MΩ (AC V & DC V)
Frequency Response: 0–20 kHz
Capacity: Up to 20 μF
Storage temperature range: -10 – 50 °C (14 – 122 °F)
Maximum input voltage: 600 V AC/DC
Fuses: 200 mA (self-resetting)
10 A/1000 V (flink)
Temperature measurement: -20 – 1000°C with K-Type sensor
AC V bandwidth: 50–400 Hz
Resistance: 200 Ω ; ±1,0 %, ±5 Digits
2 kΩ, 20 kΩ, 200 kΩ ; ±1,0 %, ±5 Digits
2 MΩ ; ±1,0 %, ±5 Digits
20 MΩ ; ±1,5 %, ±5 Digits
Weight: 380 g incl. batteries
Scope of delivery: Incl. test leads, holster, temperature sensor and battery
Supplies, Optional: Adapter for K-Type sensor system carrying case
