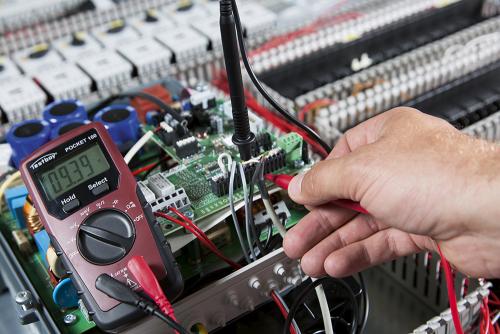

TESTBOY - Digital Multimeter 600 V Testboy Pocket 100
The Multimeter Testboy Pocket 100 is a further development of the popular Testboy Pocket. Due to its compact construction, many functions and easy operation, it is a valuable aid not only in handcrafts or in the industrial sector, but also for hobby electricians during all standard measurement tasks.
How you benefit
Breakage and impact-resistant ABS housing
Highly legible LC display with background illumination
Data-Hold function
Specifications
Technical Data TESTBOY Pocket 100
Display: LCD with 4 digits
Overload Category: CAT III 600 V
Diode Test: Yes
Standard: EN 61010-1, EN 61010-2-33
Data hold: Yes
Dimensions: 133 x 62 x 27 mm
AC Voltage: 0 – 600 V ±0,8 %, ±3 Digits
Operating temperature range: 0 – 40 °C (≤ 75 % RH)
DC Voltage: 0 – 600 V ±0,8 %, ±2 Digits
Continuity Test: Yes, signal sound in case of resistance < 50 Ω
Input impedance: 10 MΩ
Frequency Response: 0 –10 MHz ±1,0 %, ±5 Digits
Capacity: 0 – 60 mF ±4,0 %, ±3 Digits
Storage temperature range: -10 – 50 °C (≤ 75 % RH)
Duty cycle in %: Yes ±3,0 %, ±3 Digits
AC V bandwidth: 40 –1000 Hz
Resistance: 0 – 60 MΩ ±2,0 %, ±5 Digits
Ranging: Automatic
Weight: 115 g incl. batteries
Colour: Red/black
Scope of delivery: Incl. measuring lines and batteries
