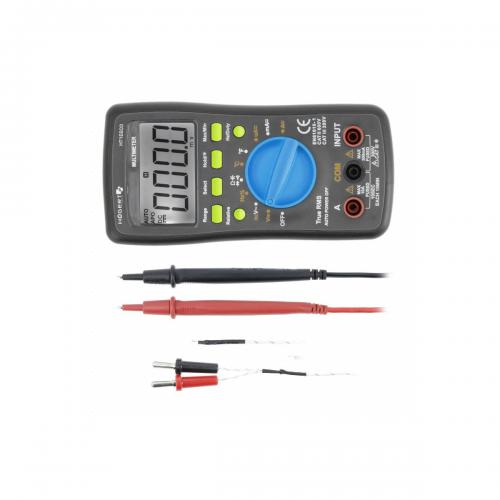

Högert Technik - Digital universal multimeter -- HT1E603
Product description
High quality digital meter is used to diagnose and detect faulty components of electrical installations. Used in the automotive, electrical and installation industries.
Characteristic
RUE RMS measures alternating current and voltage – precise RMS value for both sinusoidal and deformed waveforms
DATA HOLD keeps the currently measured value on the display
RANGE – switches between auto and manual selection of the operating range
RELATIVE – relative value measurement
MIN/MAX – registers minimum and maximum values
temperature measurement from -20°C to 1000°C / -4ºF~1832ºF using the included thermocouple makes it easy to detect faulty electrical components
multimeter measures DC and AC voltage up to 600 V, DC and AC current up to 10 A and resistance up to 40 MΩ, capacitance up to 2 mF, frequency up to 5 MHz, performs diode and continuity tests

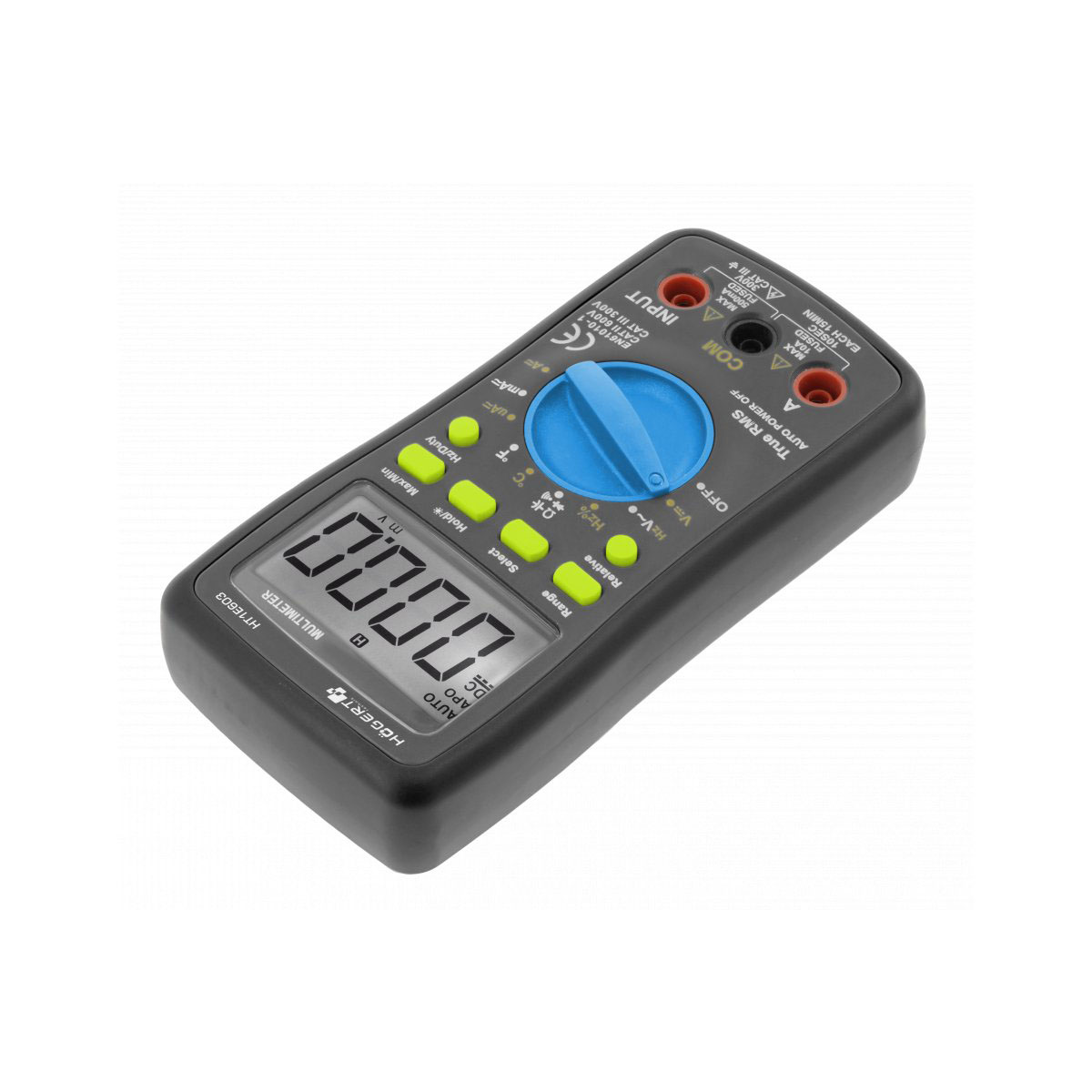

large LCD screen with white backlight, allows to display and read 3999 counts even in the dark
rubber casing protects against mechanical damage
comfortable, ergonomic, compact shape allows comfortable, single-hand operation
3×1,5 V AAA battery power supply, longer battery life thanks to Auto Power Off
a stand on the back of the body enables to position the device for better visibility of the displayed data, special holders for attaching cables and a bracket for hanging the meter on the wall

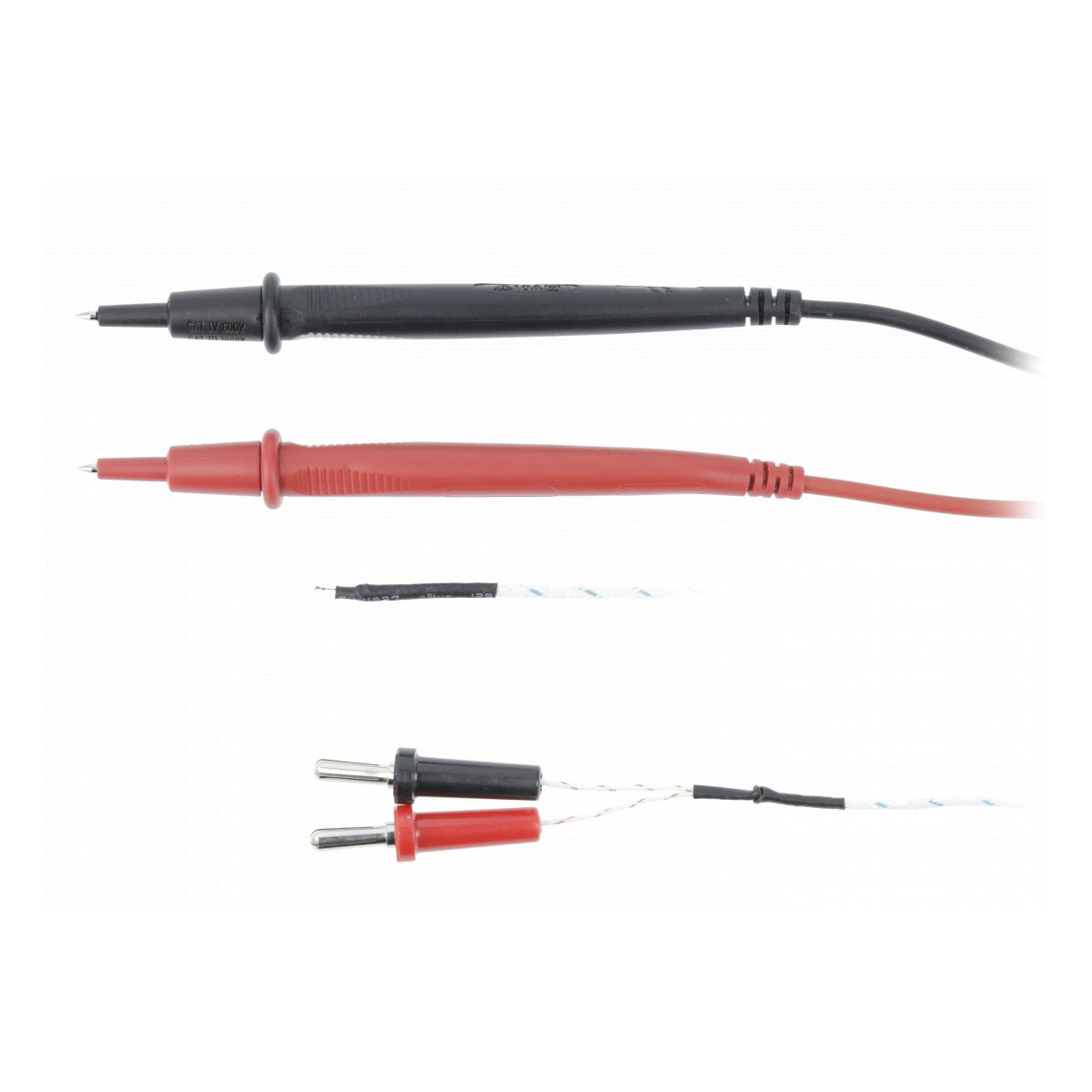

test leads included.
Technical data
Additional information TEMPERATURE -20~10000C
MIN/MAX
RELATIVE
C [mF] 2
DATA HOLD YES
I AC [A] 10
I DC [A] 10
R [Ω] 60M
RANGE AUTO RANGE
TRUE RMS YES
U AC [V] 45
U DC [V] 600
