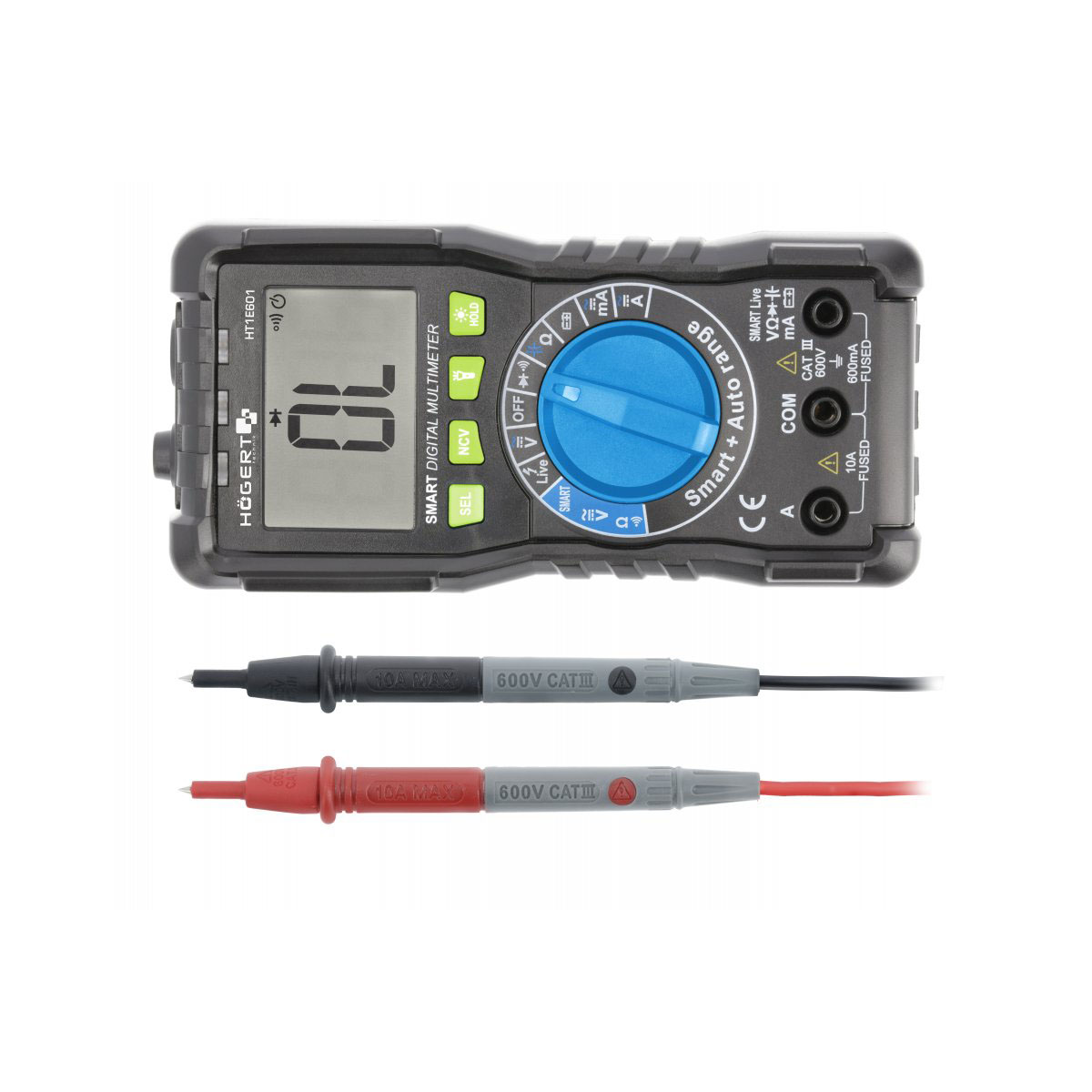

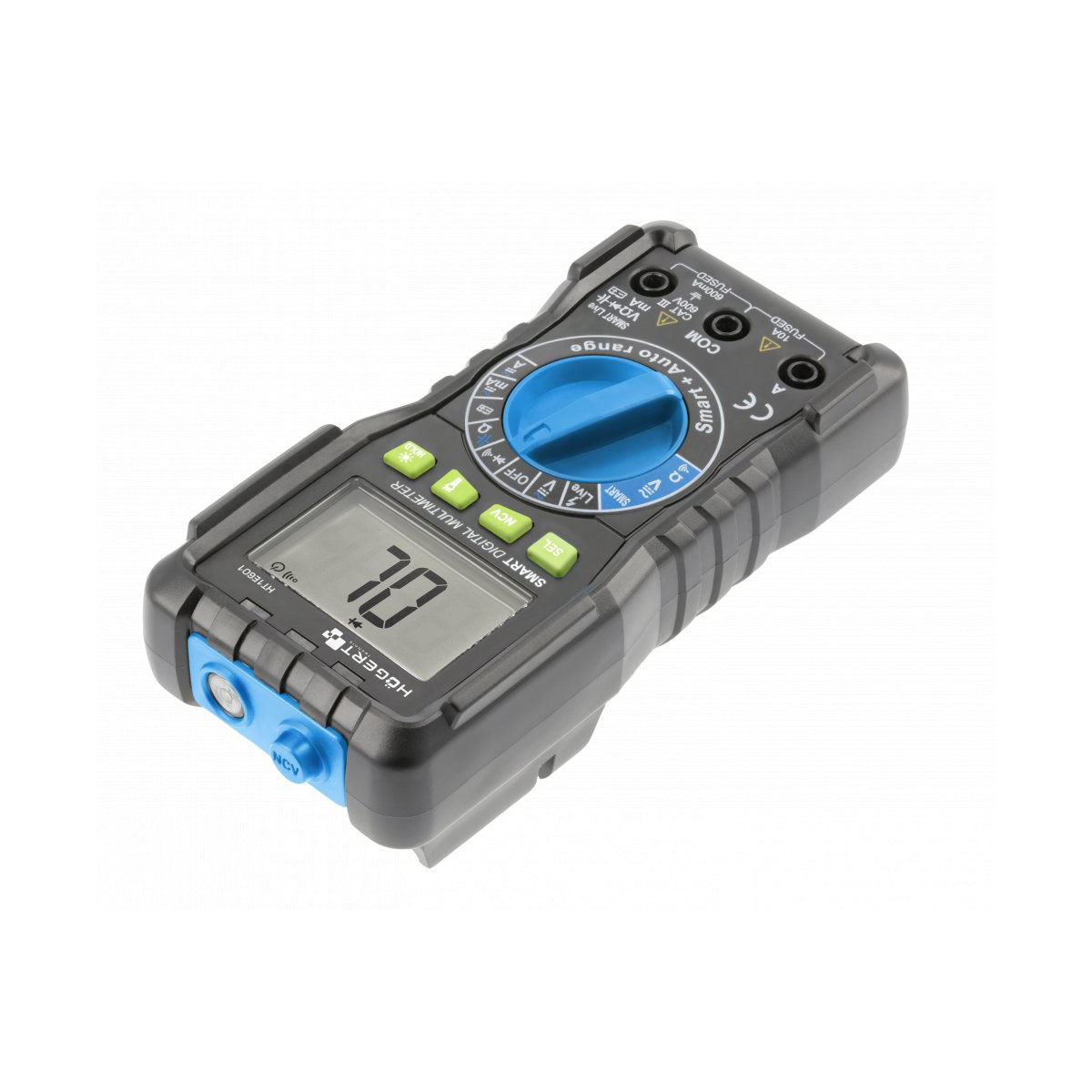

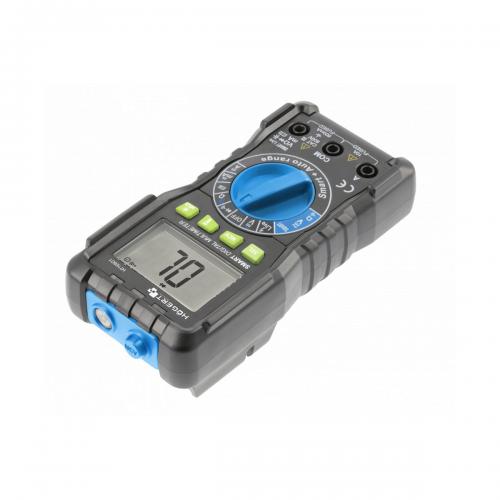

Högert Technik - Digital universal gauge -- HT1E601
Product description
High quality digital meter is used to diagnose and detect faulty components of electrical installations. Used in the automotive, electrical and installation industries. SMART technology automatically recognizes the measured parameter without the need to switch functions manually.
Characteristic
SMART technology for quick and easy measurements – the meter recognizes and adjusts the parameters for DC and AC voltage, diode test or resistance
TRUE RMS measures alternating current and voltage – precise RMS value for both sinusoidal and deformed waveforms
NCV enables non-contact detection of live current in cables
DATA HOLD keeps the currently measured value on the display
LIVE – cable phase measurement / detects AC current in the cable
RANGE – switches between auto and manual selection of the operating range
multimeter measures DC and AC voltage up to 600 V, DC and AC current up to 10 A and resistance up to 99,99 MΩ, capacitance up to 10 mF, frequency up to 60 kHz, performs diode and continuity tests and battery tests with 1,5 / 9 V
large LCD backlit screen which 9999 counts display
built-in fl ashlight enables work at night and in the dark
rubber casing protects against mechanical damage
comfortable, ergonomic, compact shape allows comfortable, single-hand operation
powered by 2×1,5 V AAA batteries, longer battery life thanks to Auto Power Off
a stand on the back of the body enables to position the device for better visibility of the displayed data, special holders for attaching cables and a bracket for hanging the meter on the wall
test leads included.
Technical data
C [mF] 99,99
DATA HOLD YES
I AC [A] 10
I DC [A] 10
NCV YES
R [Ω] 99.99m
RANGE AUTO RANGE
Torch YES
TRUE RMS YES
U AC [V] 45
U DC [V] 600
