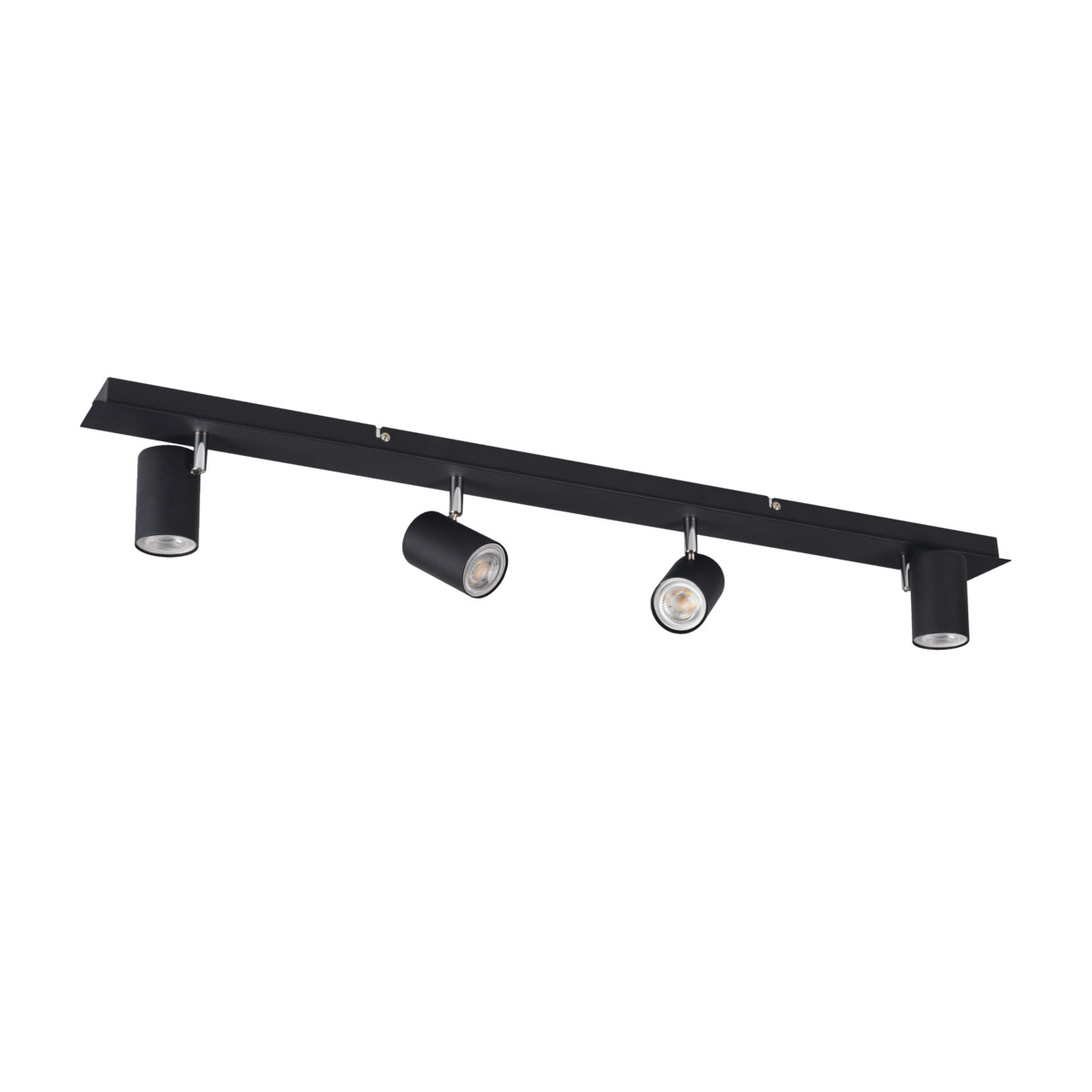

KANLUX - Wall & ceiling lighting fitting EVALO EL-4I B-SR - 35699
GENERAL DATA:
Colour: black
Place of assembly: wall mounted, ceiling mounted
Place of application: Indoors
Minimum distance from the illuminated object: 0,5m
The product is not suitable to be covered with a heatinsulating material: yes

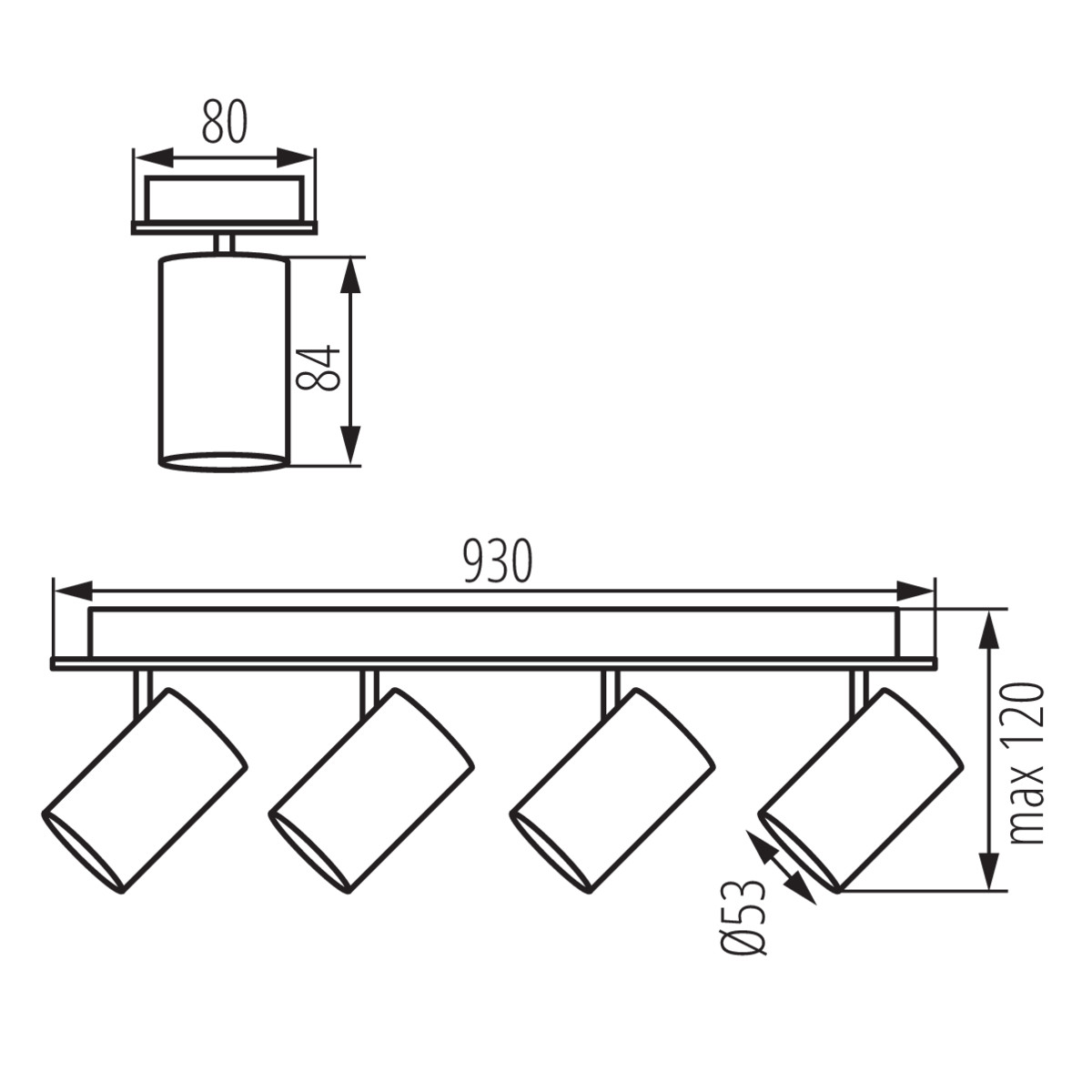

Length [mm]: 930
Width [mm]: 80
Height [mm]: 120
TECHNICAL DATA:
Rated voltage [V]: 220-240 AC
Rated frequency [Hz]: 50
Maximum power [W]: 4 x max 10
Class of protection against electric shock: I
Light source: PAR16
Light source included: no
Cap: GU10
Ambient temperature range to which the product can be
exposed: 5÷25
Enclosure material: aluminum alloy
Connection type: Bolt terminal block
Range of sections of wires used [mm²]: 1÷2,5
The fixture is movable horizontally [°]: 320
The fixture is movable vertically [°]: 90
IP class: 20
