MiBOXER - SW5 5 in 1 LED Controller(WiFi+2.4G)
MiBoxer SW5 – 5-in-1 WiFi LED Strip Controller, 12–24 V DC

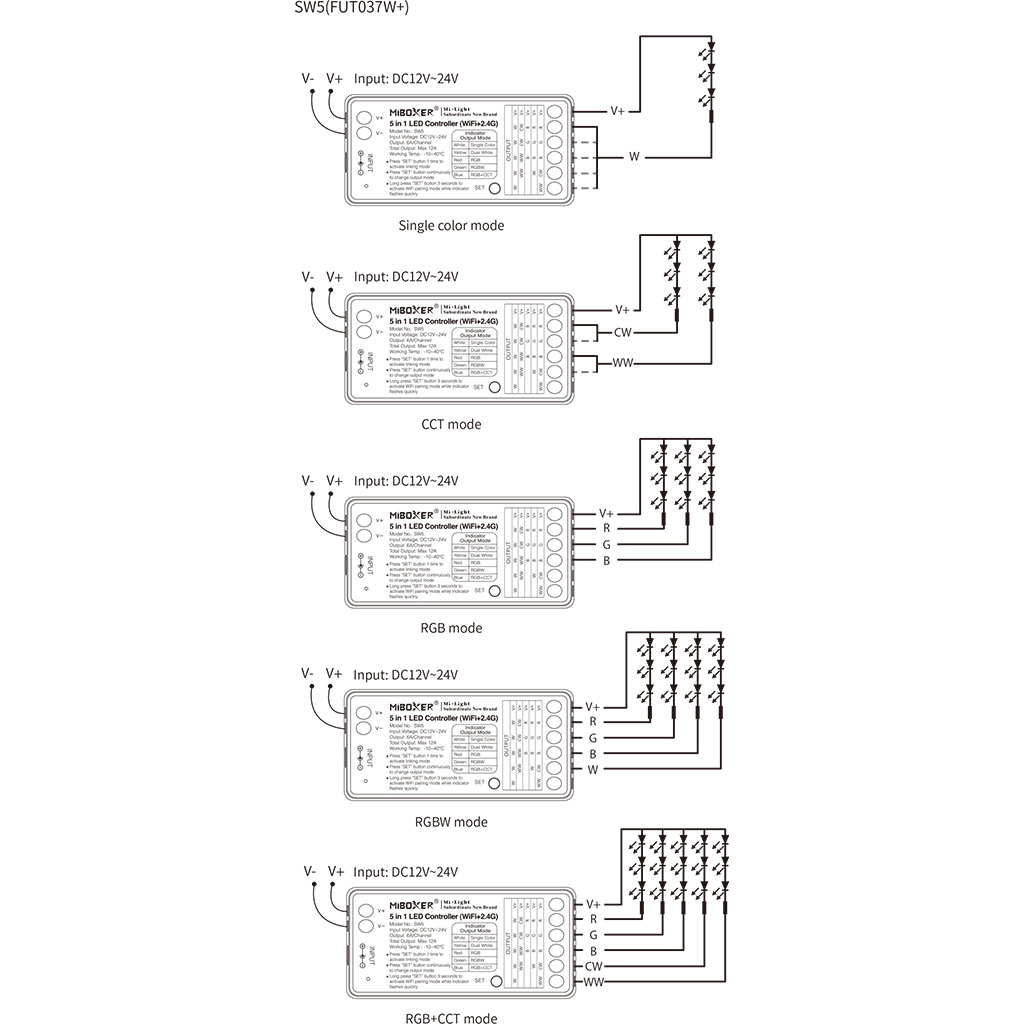

The MiBoxer SW5 combines five operating modes in one controller: single colour, CCT, RGB, RGBW and RGB+CCT. Select the mode that matches your LED strip to control brightness, colours and colour temperature according to the strip’s capabilities.

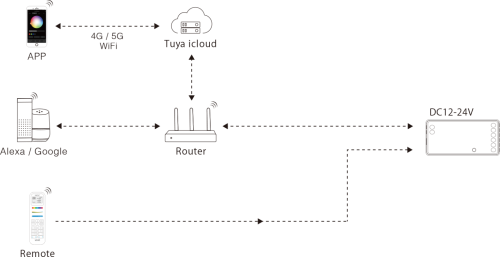

The controller supports Tuya Smart app control over WiFi and compatible MiBoxer 2.4 GHz RF remotes. A separate MiBoxer 2.4 GHz gateway is not required for app control. It is suitable for residential, commercial and decorative lighting.
Please note: The SW5 is designed for standard constant-voltage LED strips. It is not an SPI controller for addressable LED strips.
Modes: Single colour / CCT / RGB / RGBW / RGB+CCT
Input voltage: 12–24 V DC
Output current: Up to 6 A per channel, 12 A total maximum
Control: WiFi / 2.4 GHz RF
