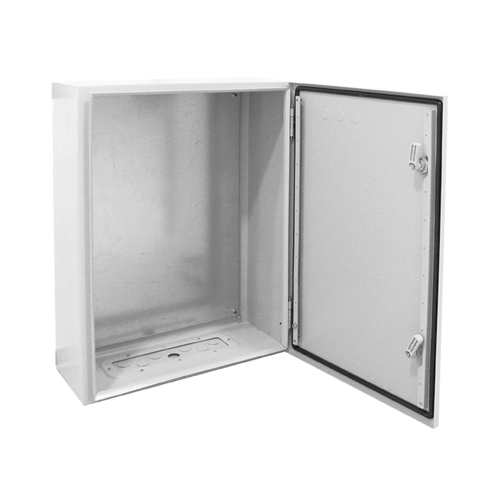

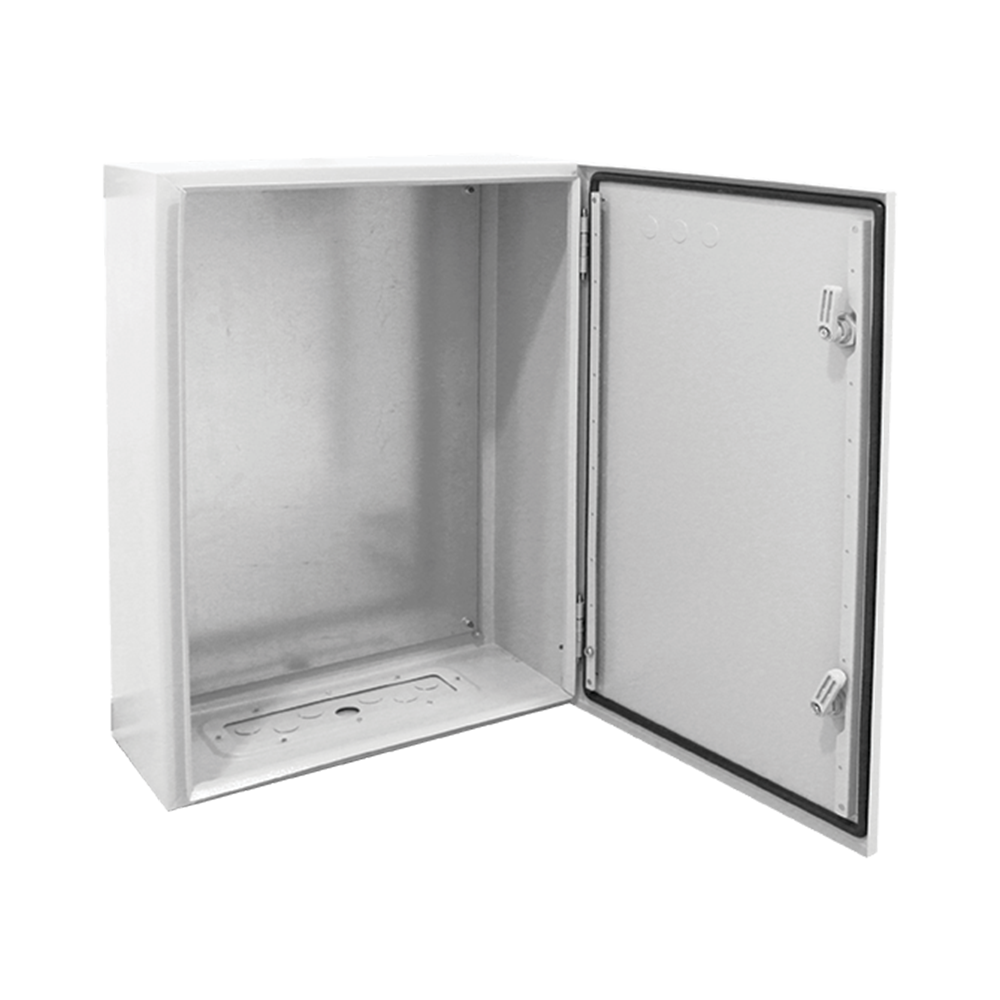

ELMARK - METAL DISTRIBUTION BOARD JXF 100/80/30 - 53100
TECHNICAL DATA
Model-JXF
Rated current-80 A
IP code-IP65
Thickness-1 mm
Type of material-Steel
Size-H:1000mm L:800mm W:300mm
Technical characteristics:
- Rated voltage: up to 1000V
- Maximum current: up to 1250А
- Dimensions:
= Height: from 250 mm to 1800mm
= Width: from 250mm to 10000mm
= Depth: 150mm/ 200mm /250mm /300mm
- Mounting plate for fixing of the equipment
- Cover for the input-output conductors
- Grounding dowel pin
- Material: Steel
- IP code: IP65
Advantages:
- Option to change the opening direction
- The anti-corrosion coating prevents from rust forming
- Supplied with metal plate for fixing the electrical devices
- Locking mechanism which prevents from free access to the electrical materials mounted in the board
Functions:
- Provide safe from atmospheric conditions and mechanical intervention environment of the equipment mounted in the board
- Used for protection, providing safety from accidental contact to the current leading parts if working close to the board
- Prevent from accidental technological switching
- Used in building, domestic and office automation
- Used in cases requiring mounting the board outdoors
Applications:
- Industry
- Production
- Residential and office buildings
- Outdoor installation
Mounting: Vertically on a flat surface
Standards: EN62208; EN60439-1; EN60439-3
