ULTRALUX - LED magnetic track for surface mounting deep 1 M 48V DC LMST20R1

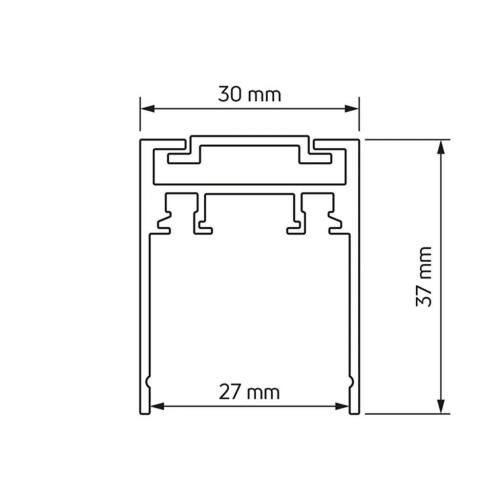

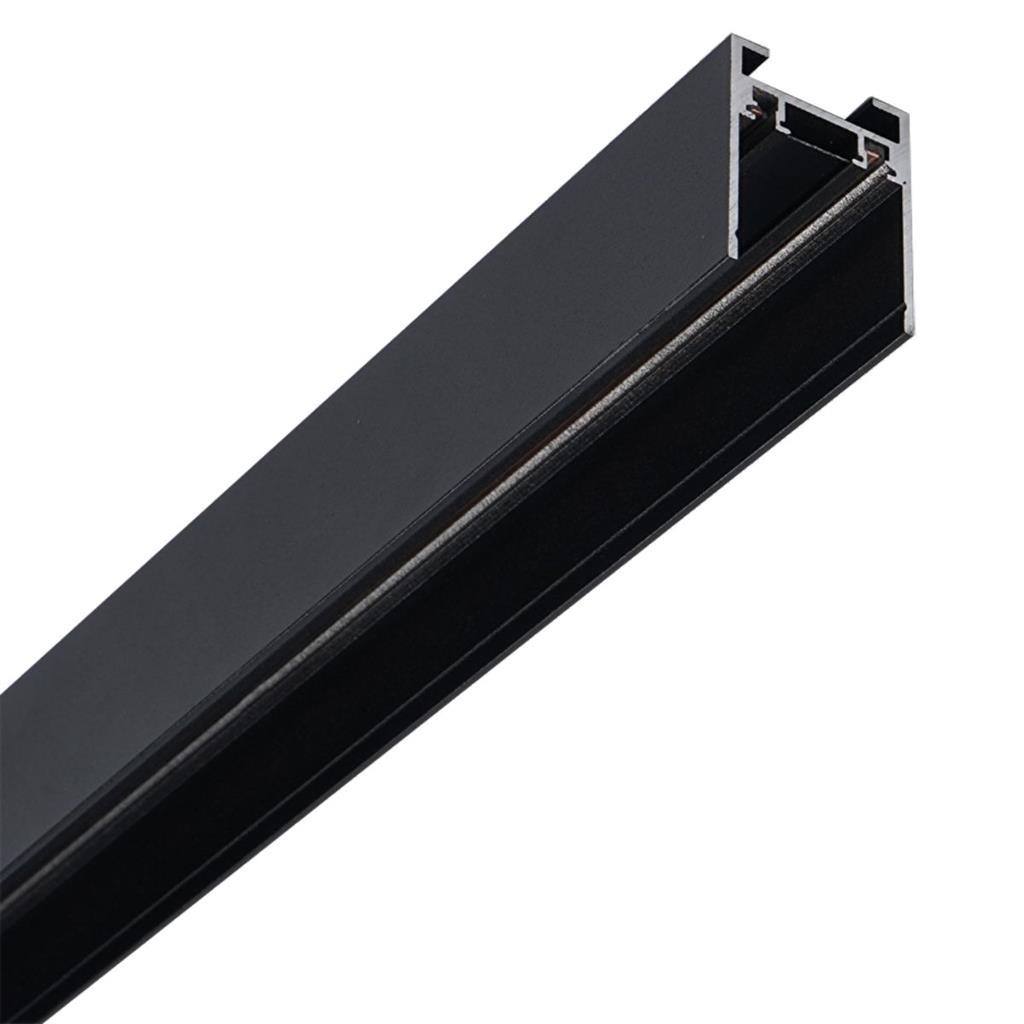

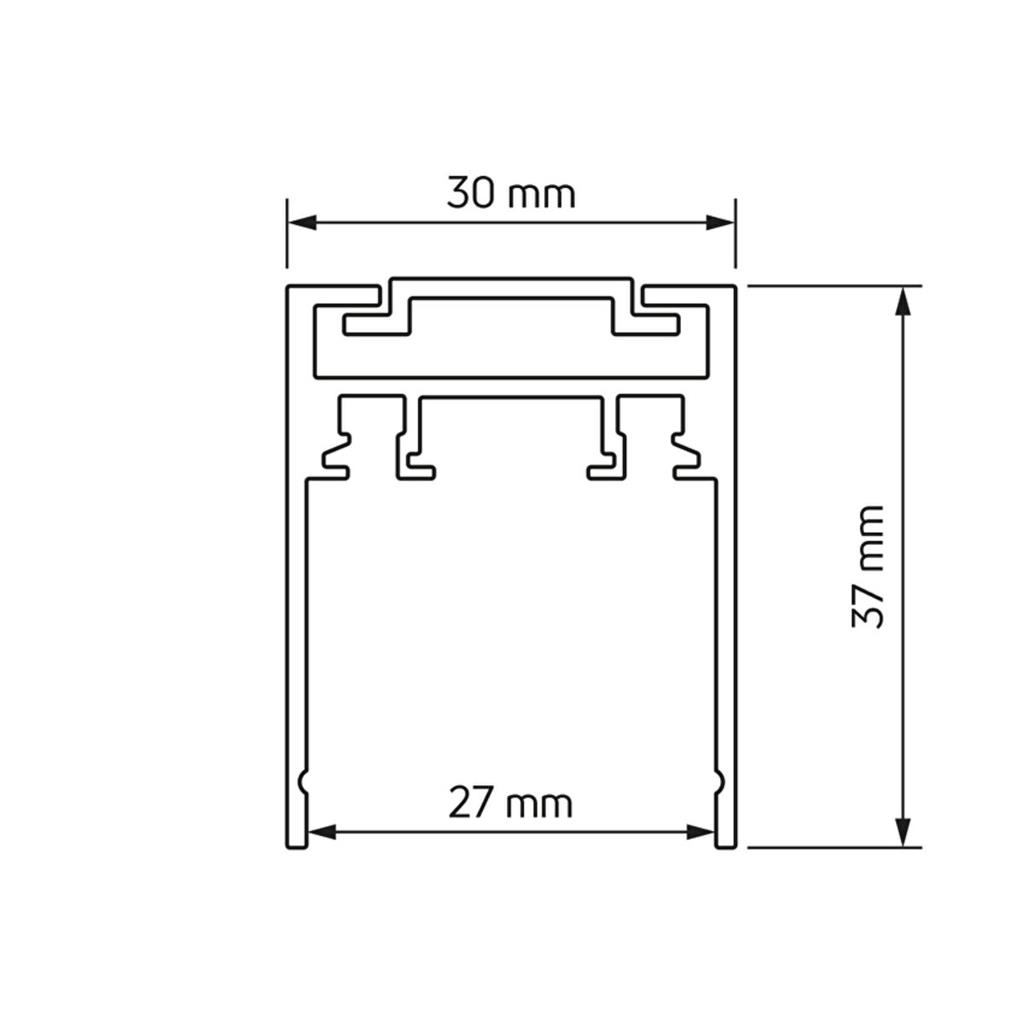

The rails have a deep profile and current-conducting plates in them. They are designed for 48V DC and a maximum load of 4A (200W). They are used to power the magnetic lighting fixtures of the system. They are available complete with a full-length cover and end caps.

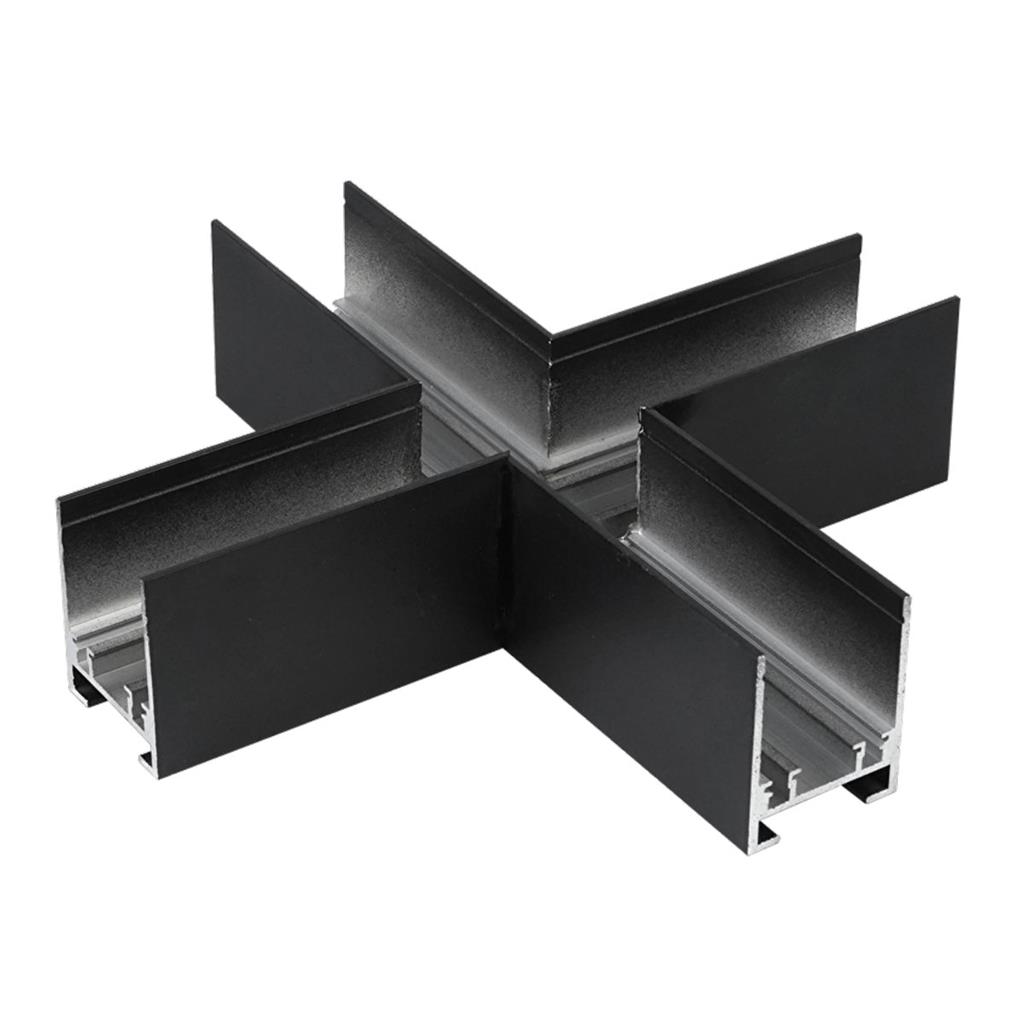

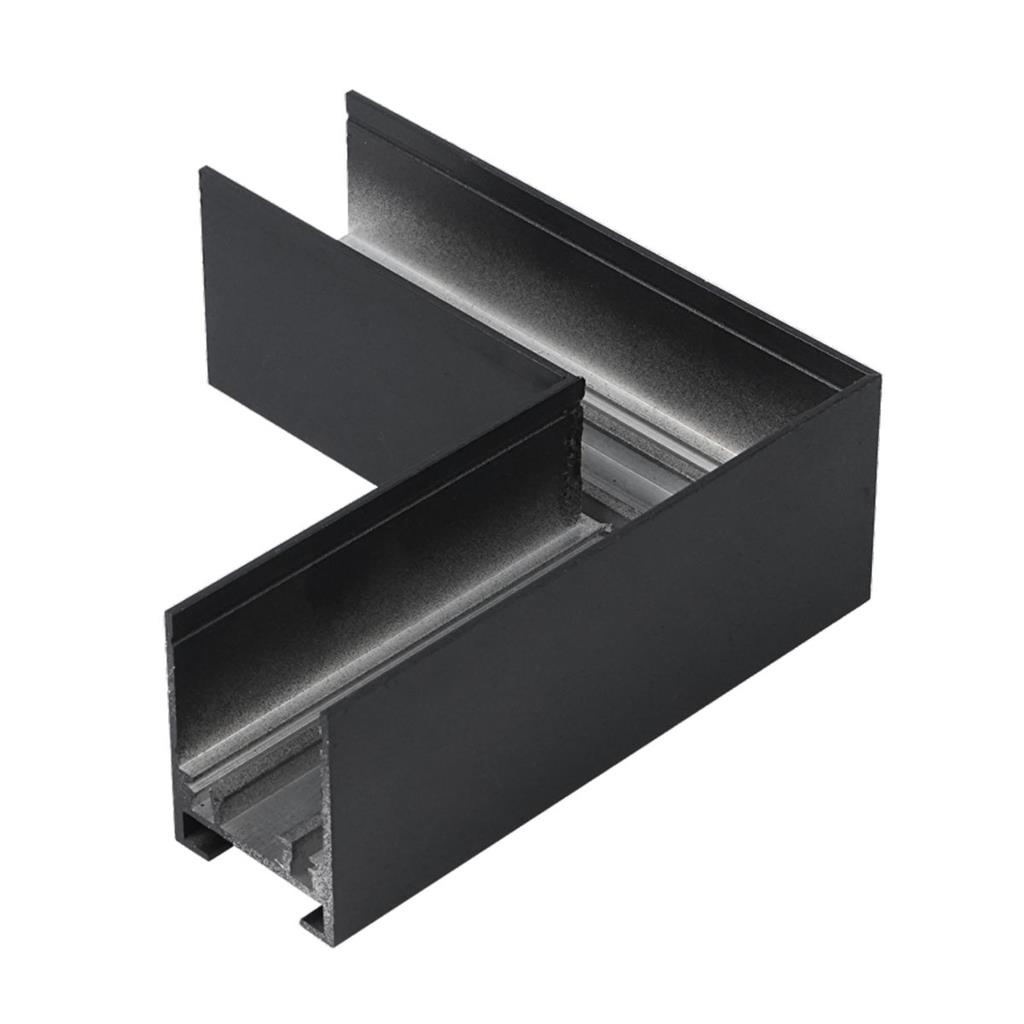

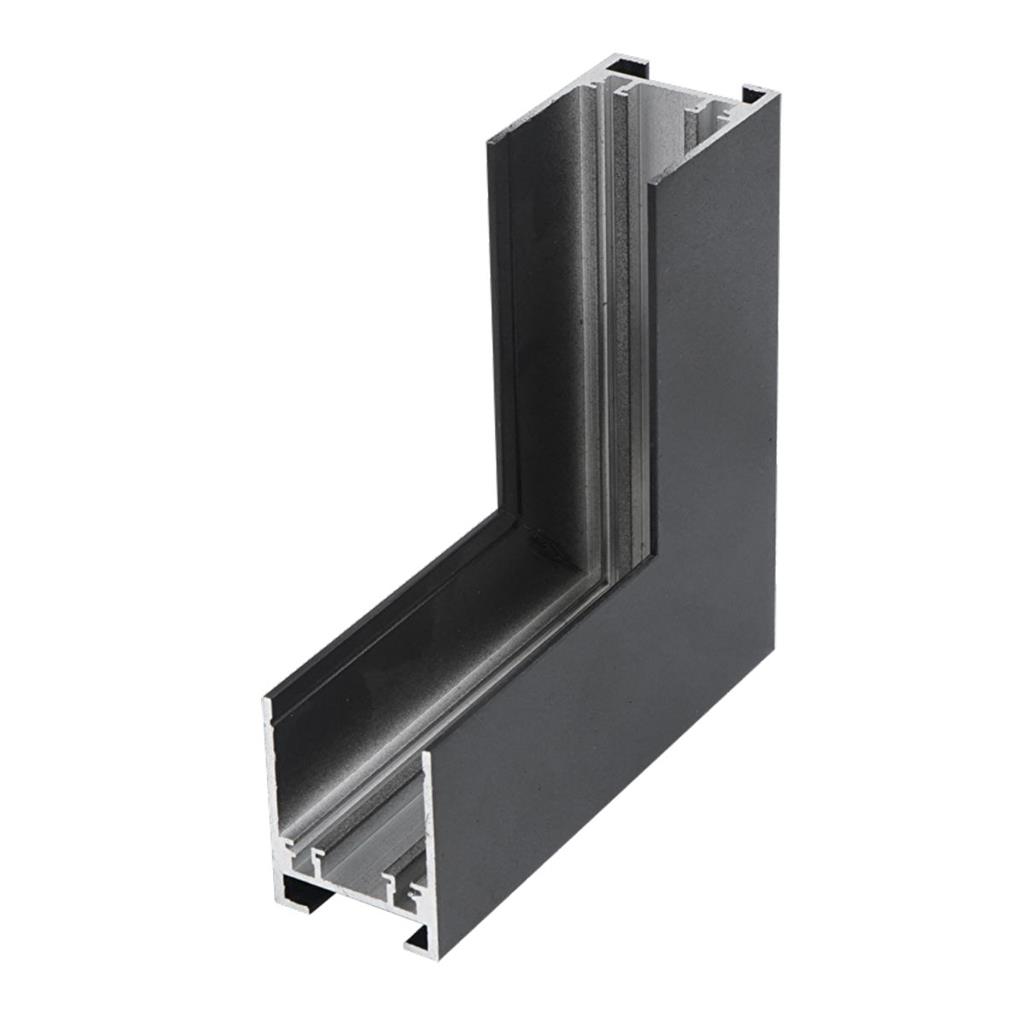

The connectors for connecting deep rails are without current-conducting plates. They have a purely aesthetic purpose. The connection between the connector and the rail and between two rails is made using the LMST20SP connecting plate. The plate is placed in the groove on the back of the connecting elements. The two elements are fixed to the plate using small screws. The connecting plate thus holds them in a strong mechanical connection.
The electrical connection is made through some of the LMST1SK and LMST2SK connectors. The two ends of the connector have adapters that are placed to fit well into the channels of the current-carrying plates. Finally, both ends are fixed by pressing the side buttons for tightening to the rail.
