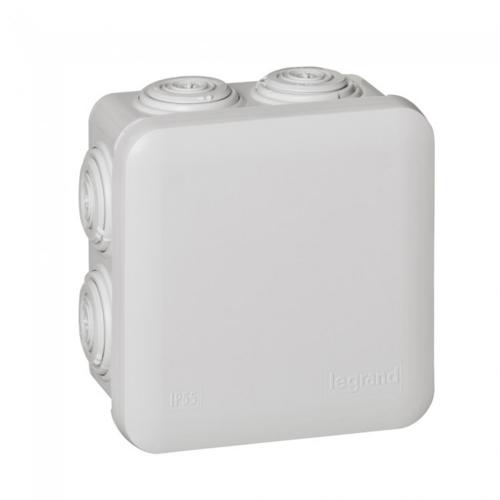

LEGRAND - Junction box surface mounting 80x80x45mm IP55 IK07 color Grey Plexo 92012
Plexo™ boxes IP 55 - IK 07 - with direct entry membrane glands - 650° C
IP 55 - IK 07
Resistance to incandescent wire 650°C
For use as junction boxes in any type of normal installation circuit
Operating temperature: -25 to +40°C
Interchangeable membrane glands with direct entries for IRL tubes up to Ø16 and R02V cables, with marked cut-out for IRL tube Ø greater than 16
Captive cover with tie. Space for marking on both sides of the cover. Fixing with vertical level adjustment. Class II is ensured by protective caps (supplied) for the fixing screws
Boxes without halogenated flame retardants (European Directive RoHS 2002/95/EC)
Square boxes
Can be fixed using a tool such as a Pulsa 700 E nail gun
7 membrane glands
65 x 65 x 40 mm
Grey RAL 7035
Accepted cable and tube Ø: 4 to 20 mm
Clippable covers
