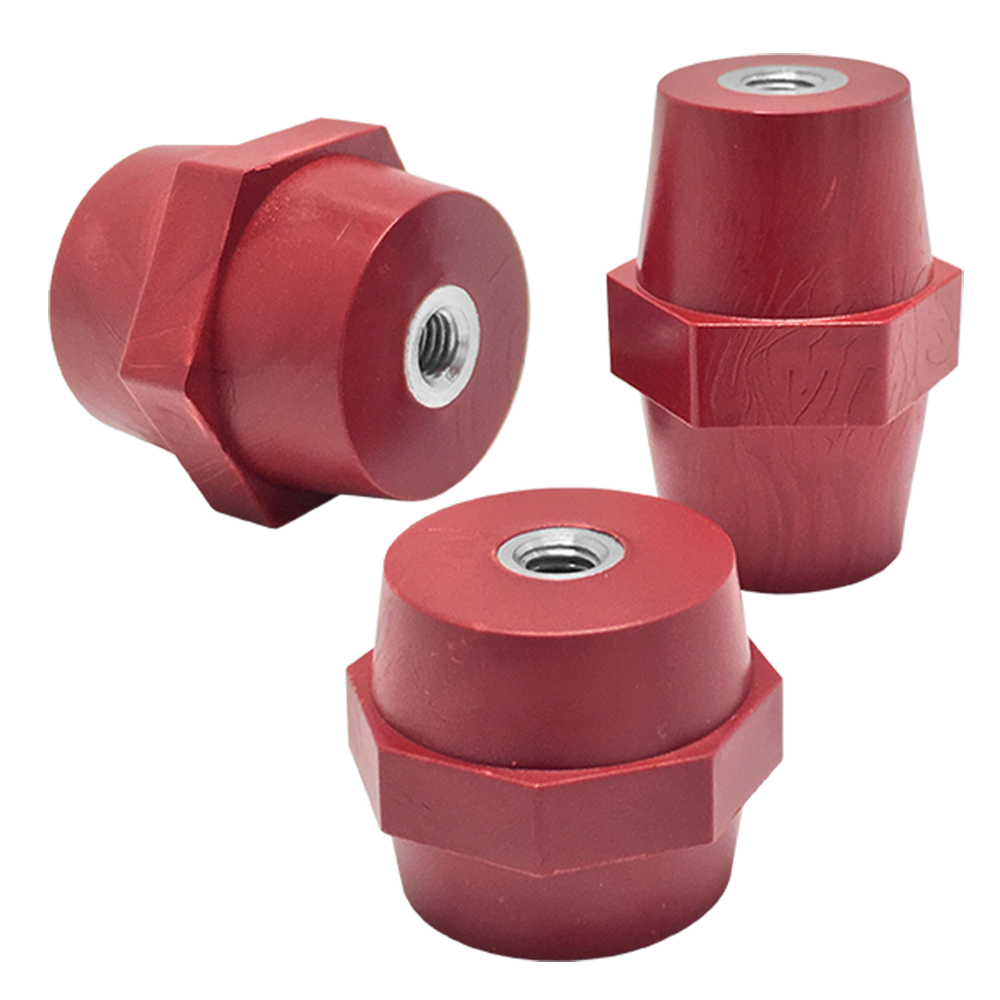

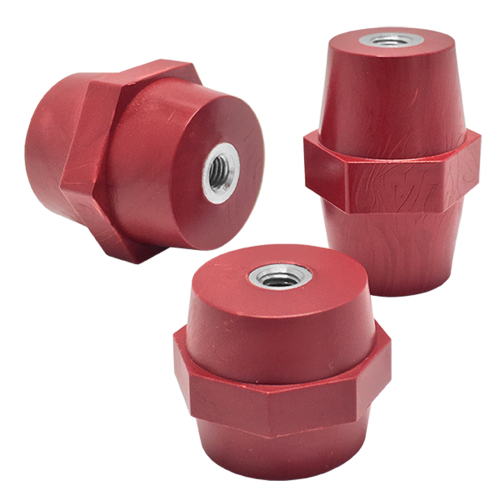

MOREK - H36-M10 HEX41 polyester spacing insulators MID3610H41
SKU MID3610H41
EAN 4744397019165
Color Red
Nominal voltage (V) 1000
Rated surge voltage (kV) 12
Service temperature (°C) 130
Material Polyester, 20% fiberglass
Mounting method Screw
Item width (mm) 41
Item length (mm) 41
Item height (mm) 36
Thread 10
Tightening torque (Nm) 50
Flame resistance UL94 V0
CN8 code 85446090
Package quantity (pcs) 25
Brand: MOREK
Family: Опорни изолатори за електротабла
Catalogue number: MID3610H41
Guarantee: 24 months
Supplier: SOLISLUX.EU
Maker: MOREK Estonia
