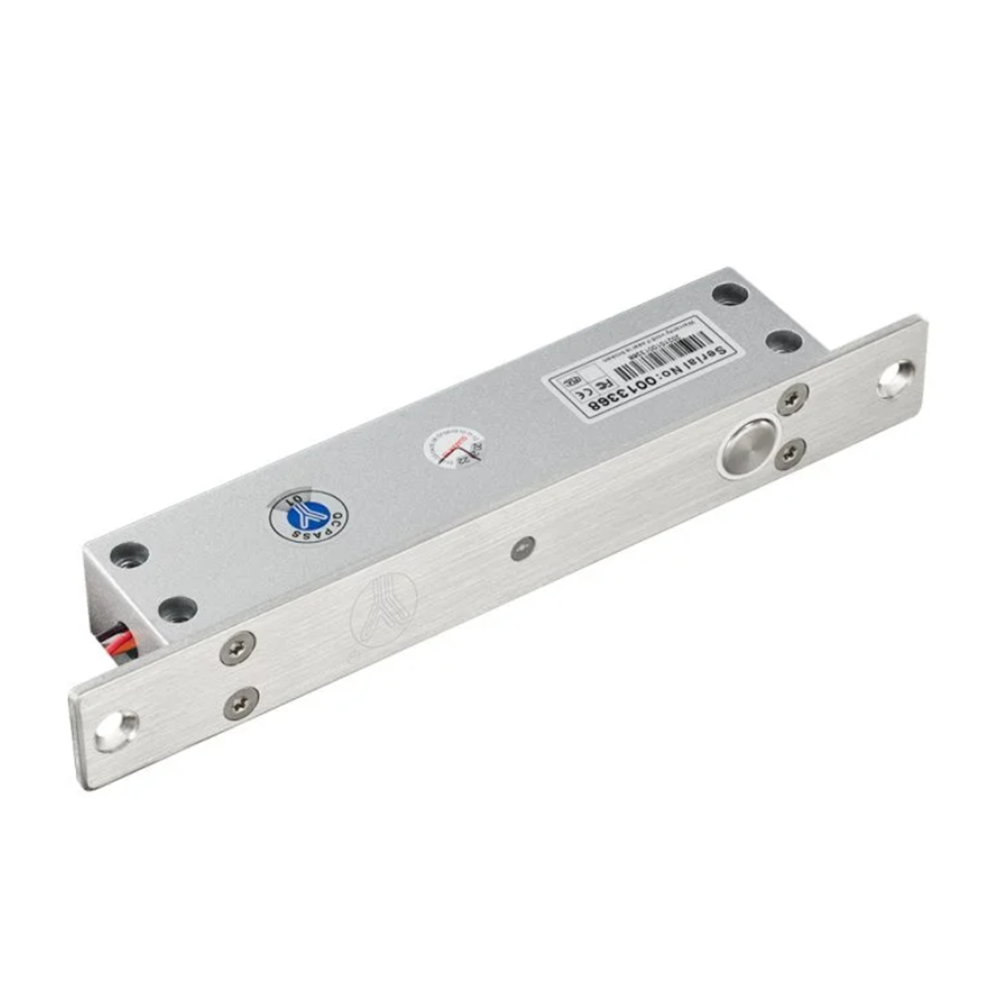

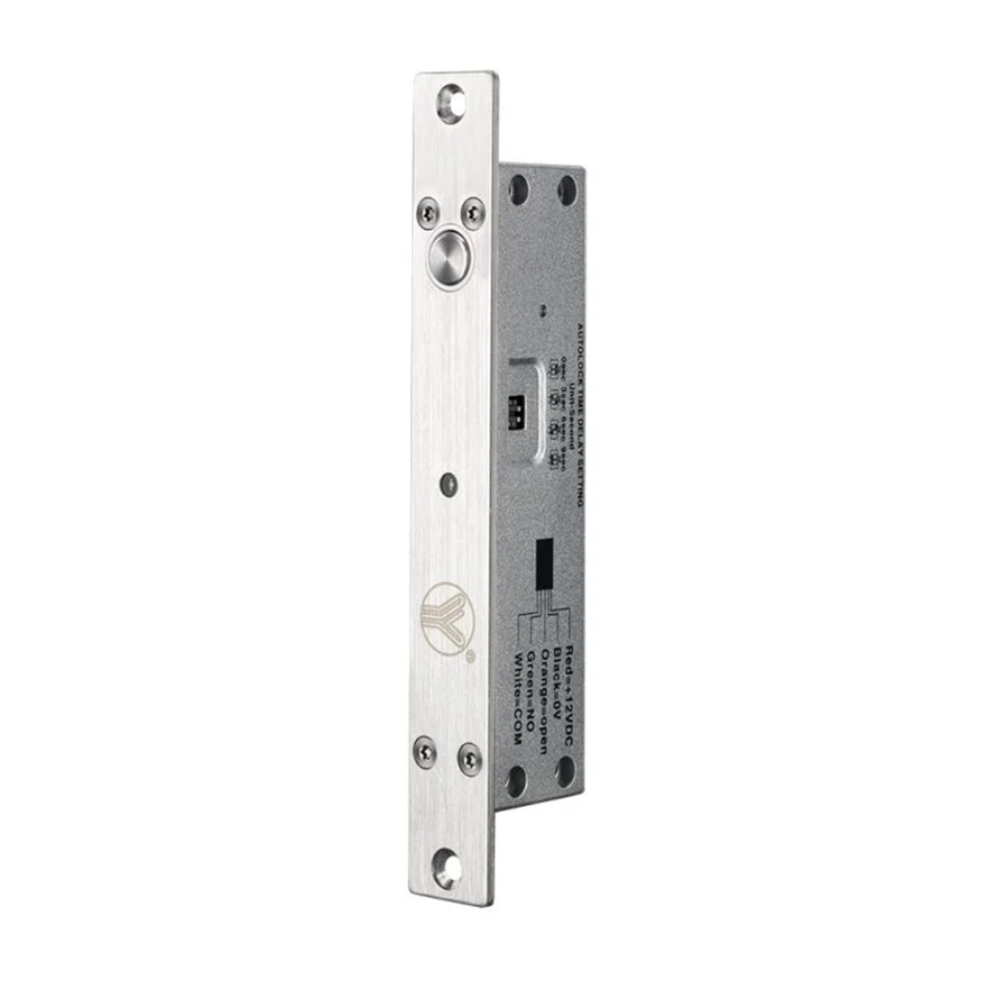

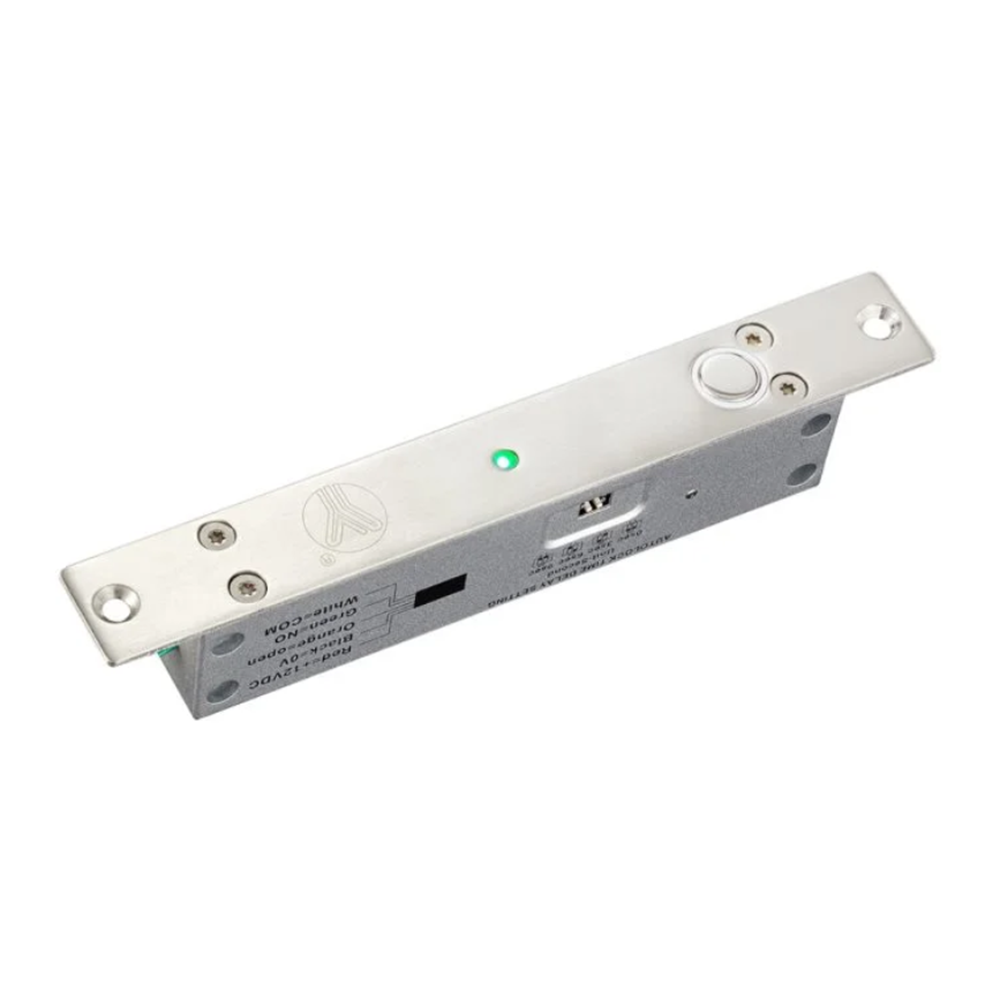

YLI Electronic - Electric drop bolt - YLI YB-500A(LED)
Electric drop bolt for installation with a narrow profile. Designed for all types of doors (wooden, metal, PVC or glass*). Features:
Housing - stainless steel;
Holding force - 1000 kg.;
Fail Safe - locked under voltage;
LED indication - Yes;
Door status output - Yes (NO/Com);
Programmable locking time - Yes (0, 3, 6 or 9 sec.);
Power supply: 12 VDC
Consumption: starting 960mA, (standby 180mA)
Distance between the two plates - 8mm. (maximum);
Operating temperature: -25ºC ~ 55ºC

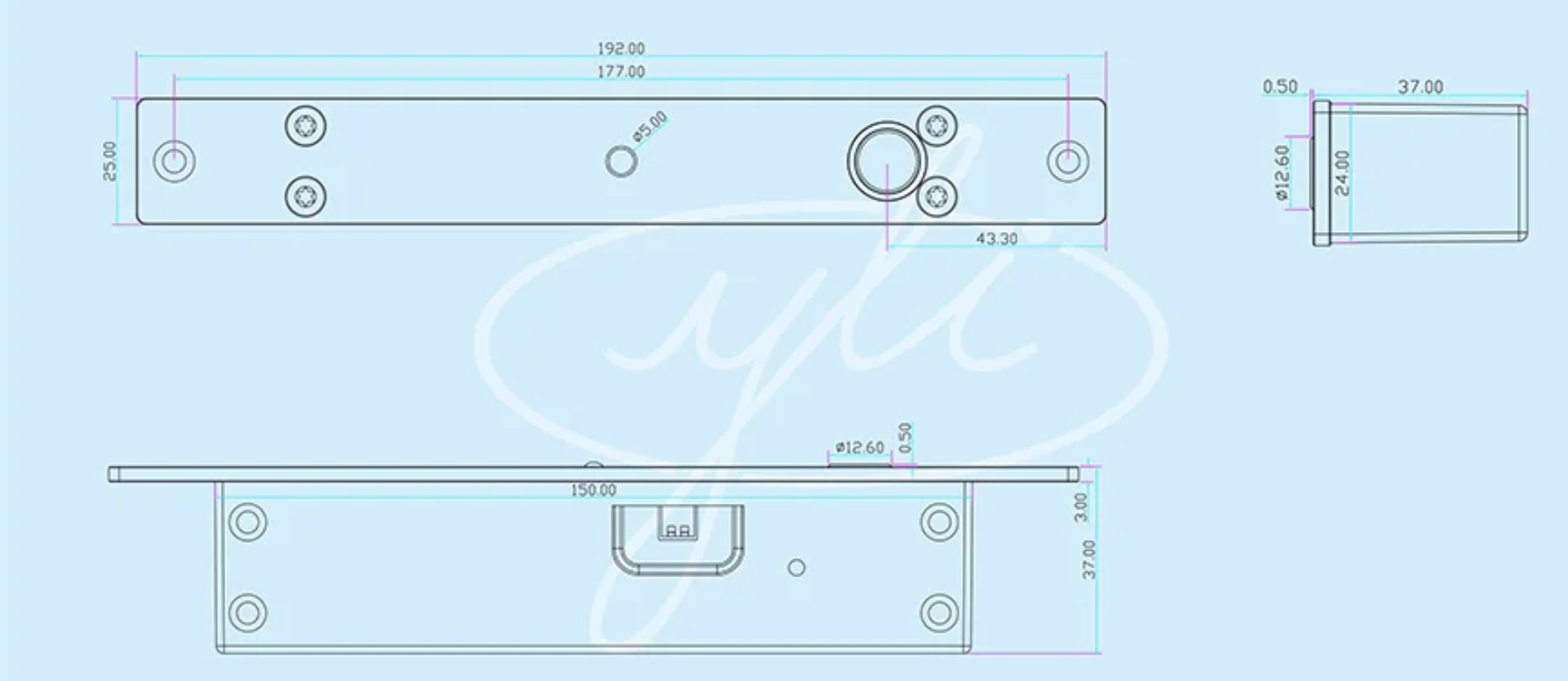

Dimensions:
Front plate - 192x25x37mm.;
Locking plate - 90x25x2mm.;
Latch - ф16x13mm.;
* for glass doors an additional plate BBK-600 or BBK-601 is required
Brand: YLI Electronic
Family: Електромагнит за повърхностен монтаж
Catalogue number: YB-500A(LED)
Guarantee: 24 months
Supplier: SOLISLUX.EU
Maker: YLI -Asia
Price: 56.57 eur
Free delivery over 49 euro
