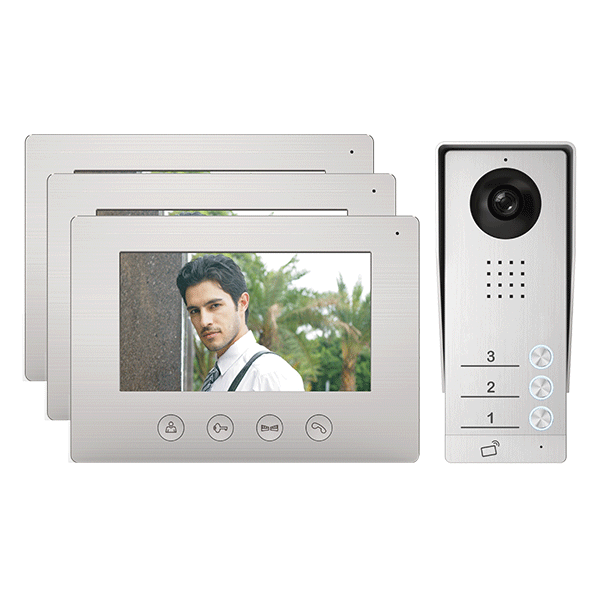

ELMARK - EL-A17 SMART TRIPLE CAMERA DOORBELL + 3 MONITORS - 195085
TECHNICAL DATA
TypeEL-A17 SMART TRIPLE CAMERA DOORBELL + 3 MONITORS
Resolution1024х600 px
IP codeIP44
Output current1-2А
Input voltage100-240 VAC
Output voltage12VDC
Sound level75dB
Screen size7"
Camera2MP
Monitor number3
You can use this smart video intercom system, when someone presses the call button on the outdoor unit, the indoor unit will ring and the mobile phone will get a notification, open the APP, you will get the video image immediately. You can unloock the door strike remotely by APP, IC card or unlock by the indoor unit for better security.
Functions:
• AHD, 3 families
• Tuya APP remote control
• 7 inch screen,
• Screen resolution 1024*600
• 1080P camera
• 4-wire connection between the outdoor station and monitor
• Indoor monitor (Two way audio)
• Water-proof, anti-oxidation and anti-vandal outdoor unit.
• Electric-lock releasing function; it can open 2 doors
• Outdoor monitoring function
• Outdoor unit IC tags reader function
• 16 ringtones for option
• Adjustable chroma, brightness, ringing and talking volume. Enclosed with bracket, screws, adapter for DIY installatio
Technical data:
• Input voltage: 100-240V AC
• Output: 12 V DC / 1-2A
• Wirering: 4 wire system
• Power consumption indoor unit:
Static state: < 3.5W
Working state: < 8W
• Power consumption outdoor unit:
Static state: < 1W
Working state: < 5W
• Screen resolution: 1024x800 / 1080P
• Camera pixels: 2 million / 1080P
• Volume: ≥ 75dB (0.3m)
• Application: Tuya app
• Material: ABS V0
• Operation temperature: from -10 to 50°C
• Operation humidity: 10 - 90%
• Dimensions indoor unit (LxWxH): 215 x 18 x152 mm
• Dimensions outdoor unit (LxWxH): 75 x 37 x 197 mm
