ELETTROCANALI - EC62008 WALL-MOUNT MOD.ENCL. IP65 200x180x100mm 8 MOD. GREY

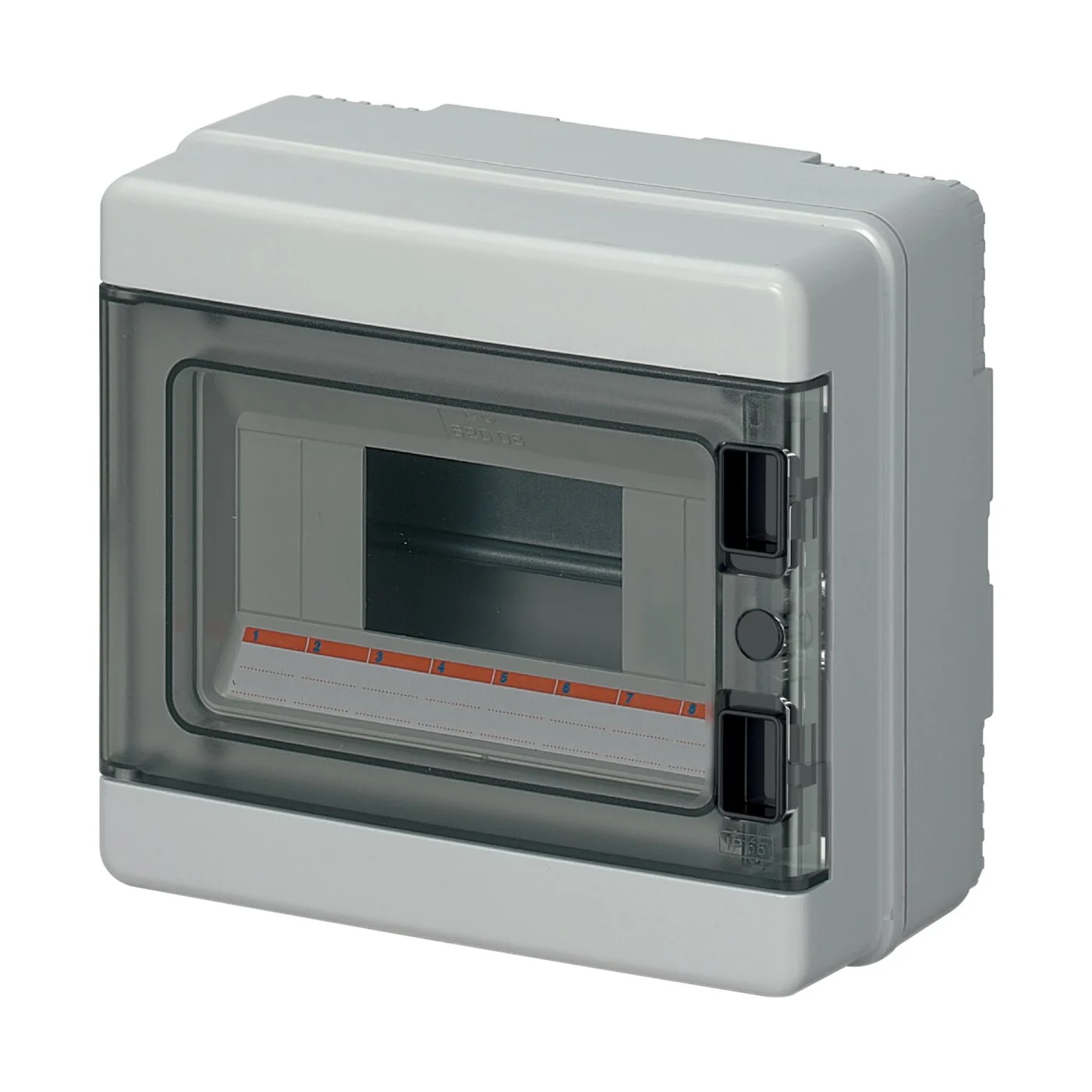

Elettrocanali EC62008 is a compact modular distribution enclosure from Series 620, designed for surface-mounted wall installation. It is suitable for electrical distribution systems in industrial, commercial and photovoltaic applications.
The enclosure features 1 row with a capacity of 2/4 DIN modules, an integrated DIN rail and a transparent door, providing convenient visual inspection of the installed electrical devices. The enclosure is made of plastic in RAL 7035 grey and is UV resistant.
The IP65 degree of protection provides a high level of protection against dust ingress and water jets, making the enclosure suitable for more demanding installation environments.
Key features:
Series: 620
Product code: EC62008
Mounting type: Surface-mounted
Number of modules: 8 DIN
Number of rows: 1
IP rating: IP65
Material: Plastic
Colour: Grey
RAL: 7035
Door: Transparent
UV resistant: Yes
DIN rail: Yes
Neutral terminal: No
Earth terminal: No
Dimensions (W × H × D): 200x180x100mm
Power dissipation according to EN 60670-24: 10 W
Standards: EN 60670-1, EN 60670-24
Manufacturer: Elettrocanali
