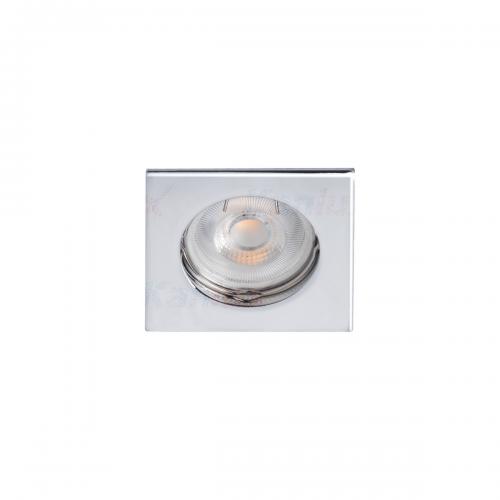

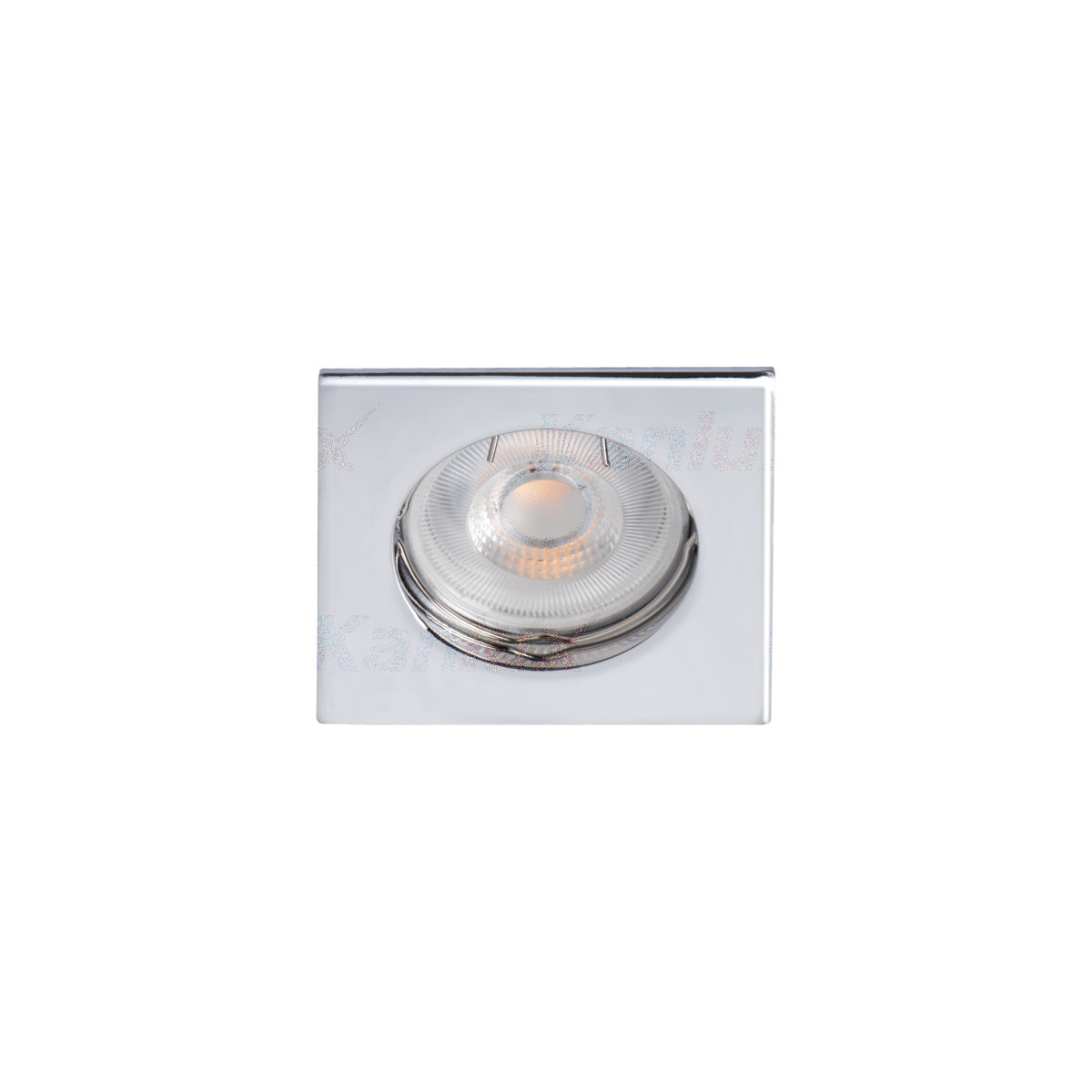

KANLUX - Ceiling-mounted spotlight fitting NAVI 04694
GENERAL DATA:
Colour: chrome
Necessity of using self-shielding lamps: yes
Place of assembly: Recessed mount in the ceiling
Place of application: Indoors
Minimum distance from the illuminated object: 0,5m
The product is not suitable to be installed on a normally
flammable surface: >35W
The product is not suitable to be covered with a heatinsulating material: yes
Light source included: no
Height [mm]: 26
Diameter [mm]: 75

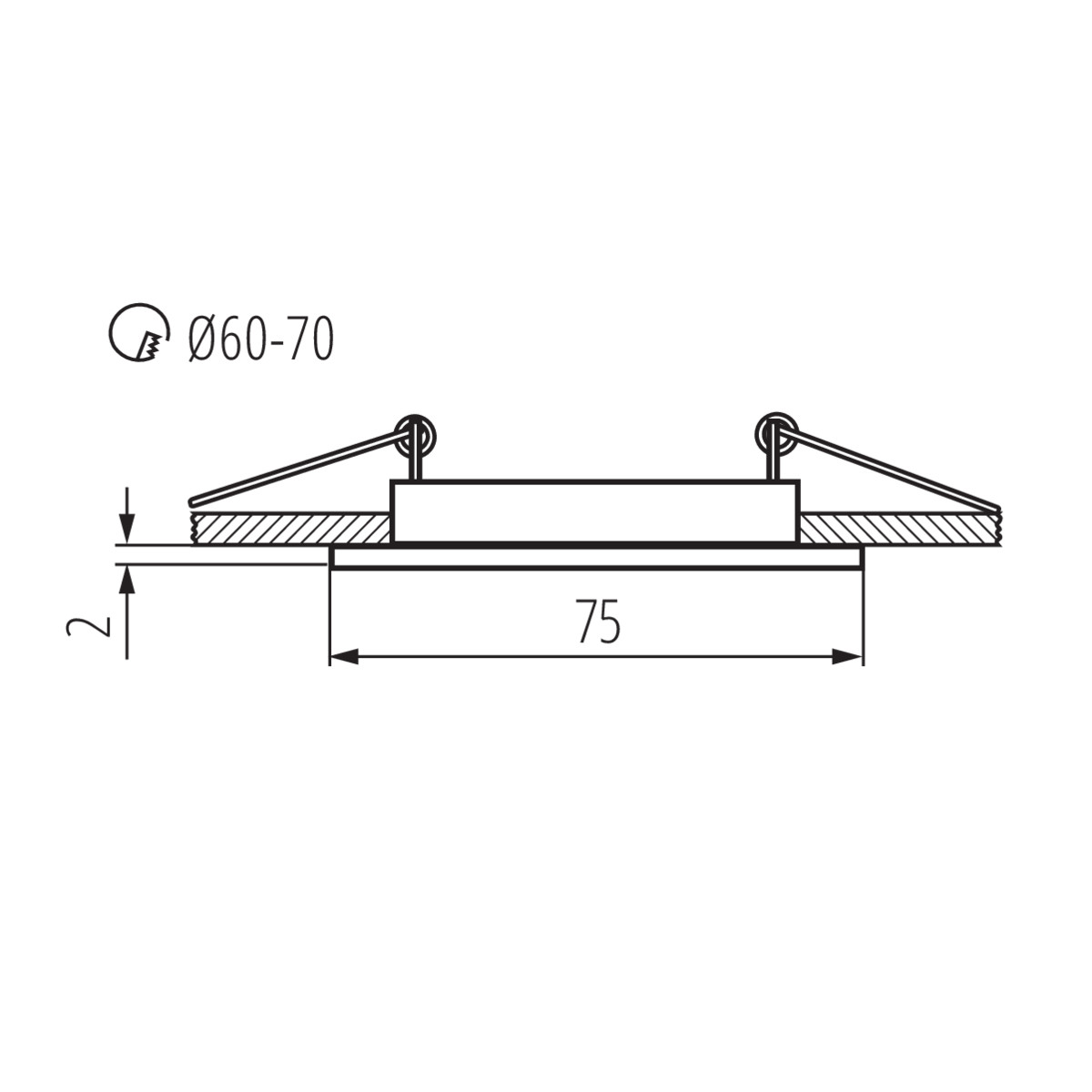

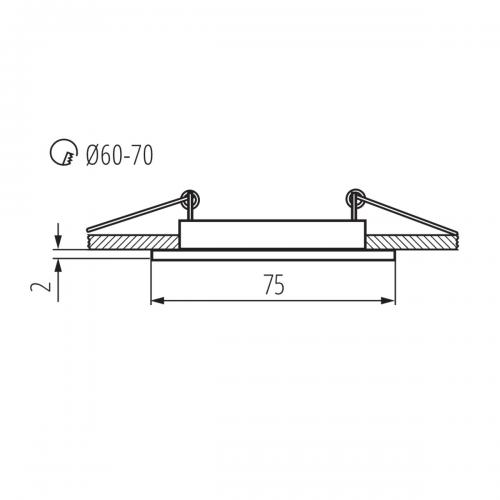

Assembly hole [mm]: Ø60-70
Wire length [m]: 0.12
TECHNICAL DATA:
Rated voltage [V]: 12 AC; 12 DC
Maximum power [W]: max 50
Class of protection against electric shock: III
Light source: MR16
Cap: Gx5,3
Ambient temperature range to which the product can be
exposed: 5÷25
Enclosure material: aluminum alloy
Connection type: Free cable ends
Wire diameter [mm²]: 0.75
Lighting-fixture angle regulation: none
IP class: 20
