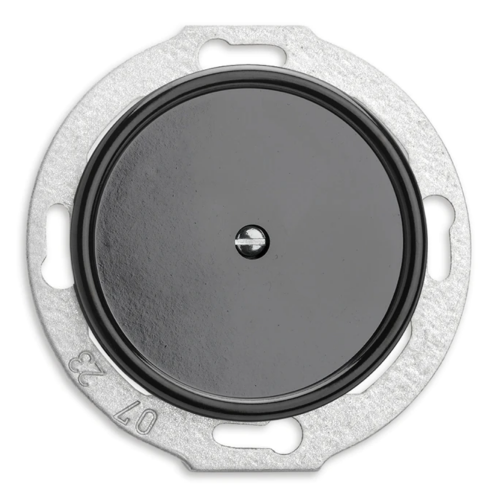

THPG - Blind cover bakelite black 173115
- Ø cover: 56 mm
- Protrusion height: 3 mm
- Depth of support frame: 23 mm
- Ø support frame: 70 mm
- Hole centre distance (frame): 59 mm

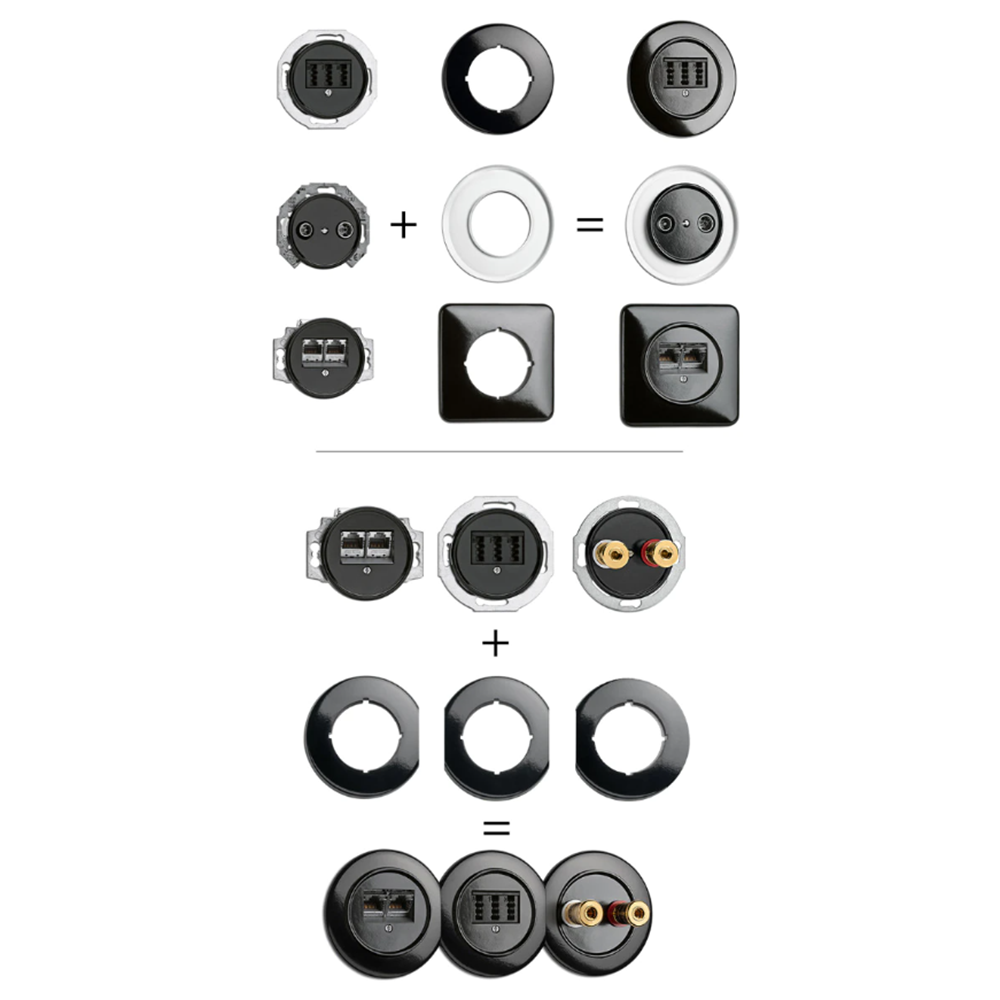

The switches and sockets can be combined with the various covers of the series and thus used in a wide variety of configurations. For the inserts of the black switch series made of Bakelite® round and square single covers, round system covers and square double, triple and quadruple covers are available. You can combine all switches and sockets of the Bakelit® switch series with these covers. The system and multiple covers can be used on existing installations without any problems, as they have been developed in accordance with the standard clearances. The Bakelit® switch range fits into all standard flush-mounted boxes.
The Bakelit® switch range is also compatible with the thermoset switch range and the covers of the glass switch range. Since the porcelain switch series is built up differently in height, this is not compatible.
