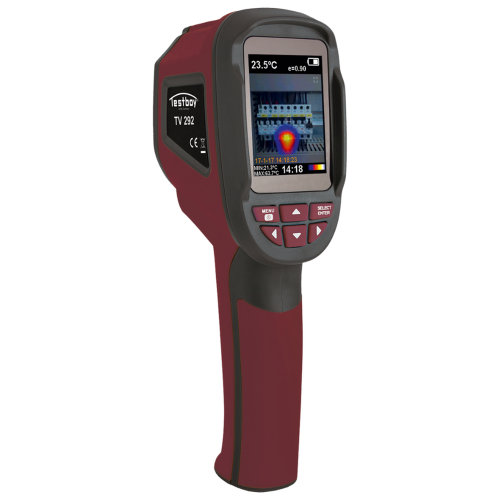

TESTBOY - Basic IR Thermal imager Testboy TV 292
The thermal imager TV 292 can be universally used. The TV 292 closes the gap between IR-Thermometer and the IR-Thermal imager. It provides you the advantages from the thermal imaging technology by detection of temperature problems, that can’t be found with the typical IR-Thermometers.
How you benefit
Digital camera for image overlay
Integrated color display
Easy handling
Universally application
Robust and reliable
Areas of application
Preventive servicing
Leak detection and localization of heating pipes
Process monitoring

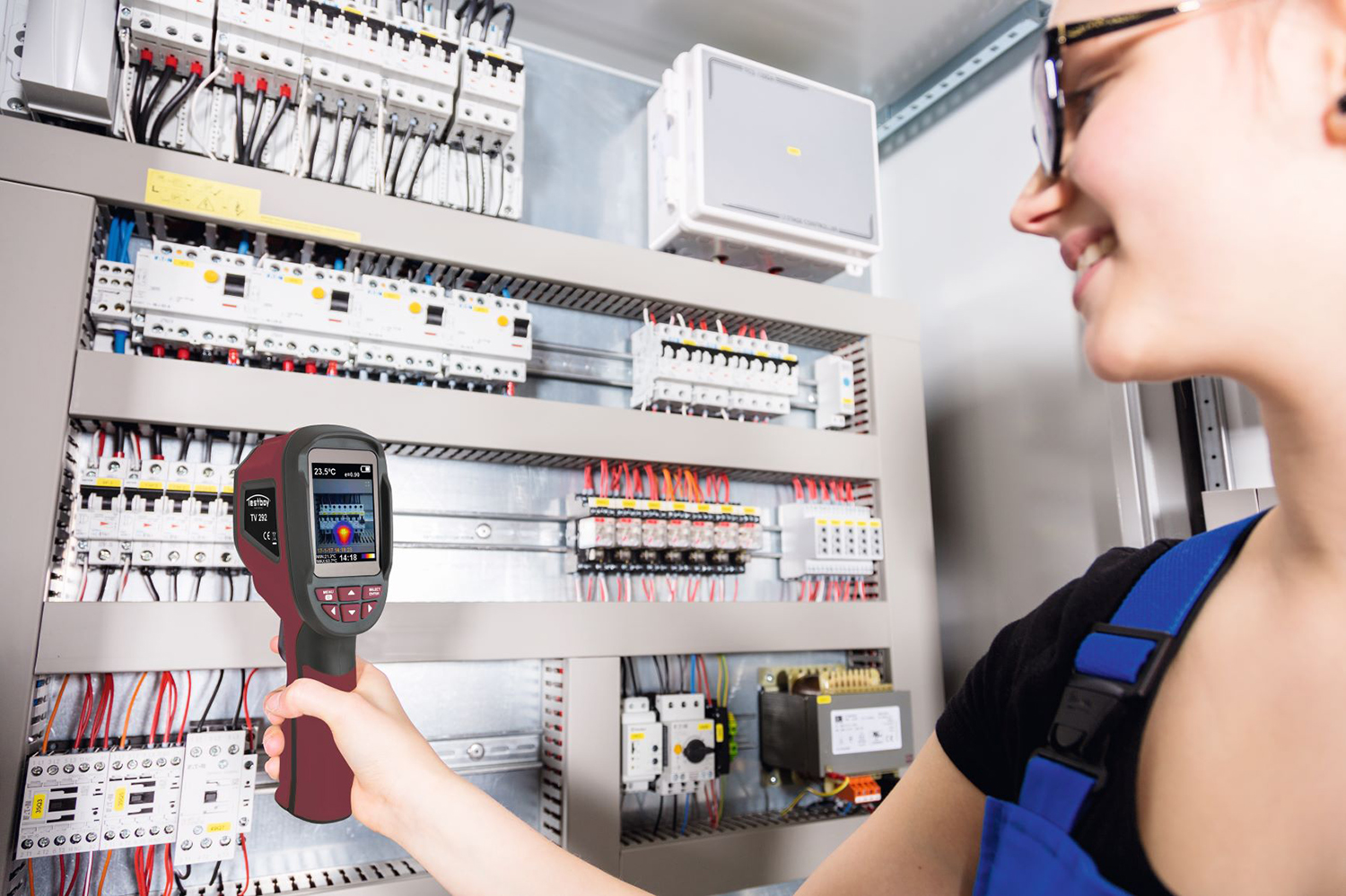

Thermal control of electrical distributions

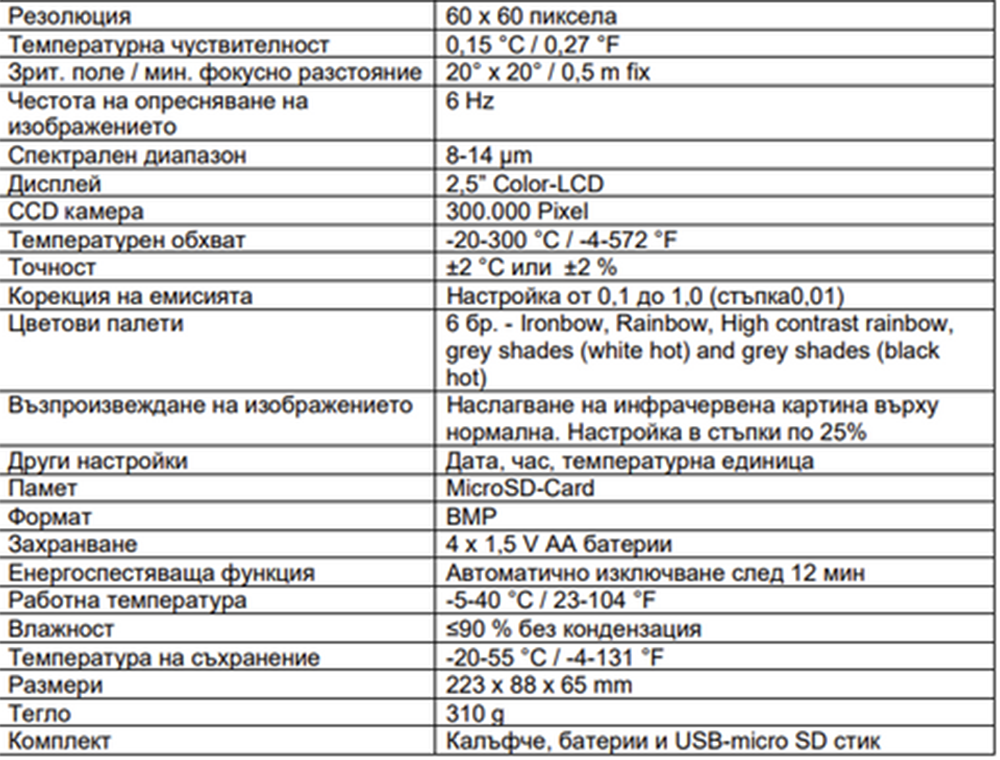

Specifications
Technical Data TESTBOY TV 292
Dimensions: 215 x 92 x 61 mm
Resolution: 60 x 60 Pixel
Accuracy: ±2 °C or ±2 % (the greater value applies)
Operating temperature: -5–40 °C / 23–104 °F
Storage temperature: -20–55 °C / -4–131 °F
Humidity: ≤90 % non-condensing
Thermal sensitivity NETD: 0,15 °C / 0,27 °F
Field of view/min focus distance: 20° x 20° | 0,5 m fix
Detector data acquisition: 6 H z
Spectral range: 8–14 μm
LC-Display : 2,5” Color-LCD
CCD-camera: 300.000 Pixel
Temperature Range: -20 –300 °C / -4–572 °F
Emissivity correction: Variable from 0,1 to 1,0 (in 0,01 increments)
Colour palette: 6 (Iron Bow, Rainbow, Rainbow High Contrast, Grayscale (White Hot) and Grayscale (Black Hot))
Further settings: Date, time, temperature unit
Storage medium: MicroSD-Card
File format-thermal: BMP
Accumulator type: 4x 1,5 V AA Batteries
Power saving: Auto-Power-Off after 12 min.
Scope of Supply: Transportation case and Batteries
Weight: 320 g
