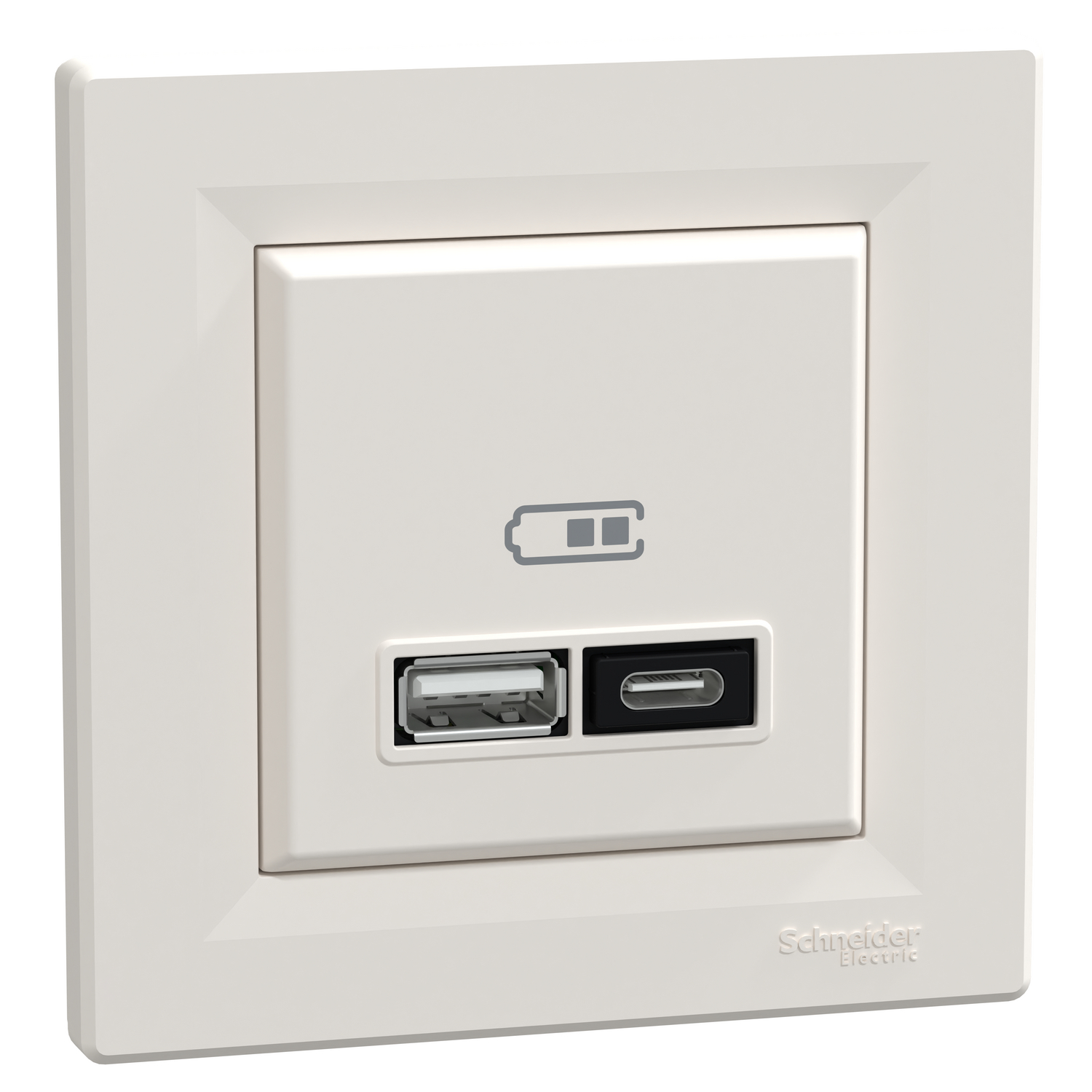

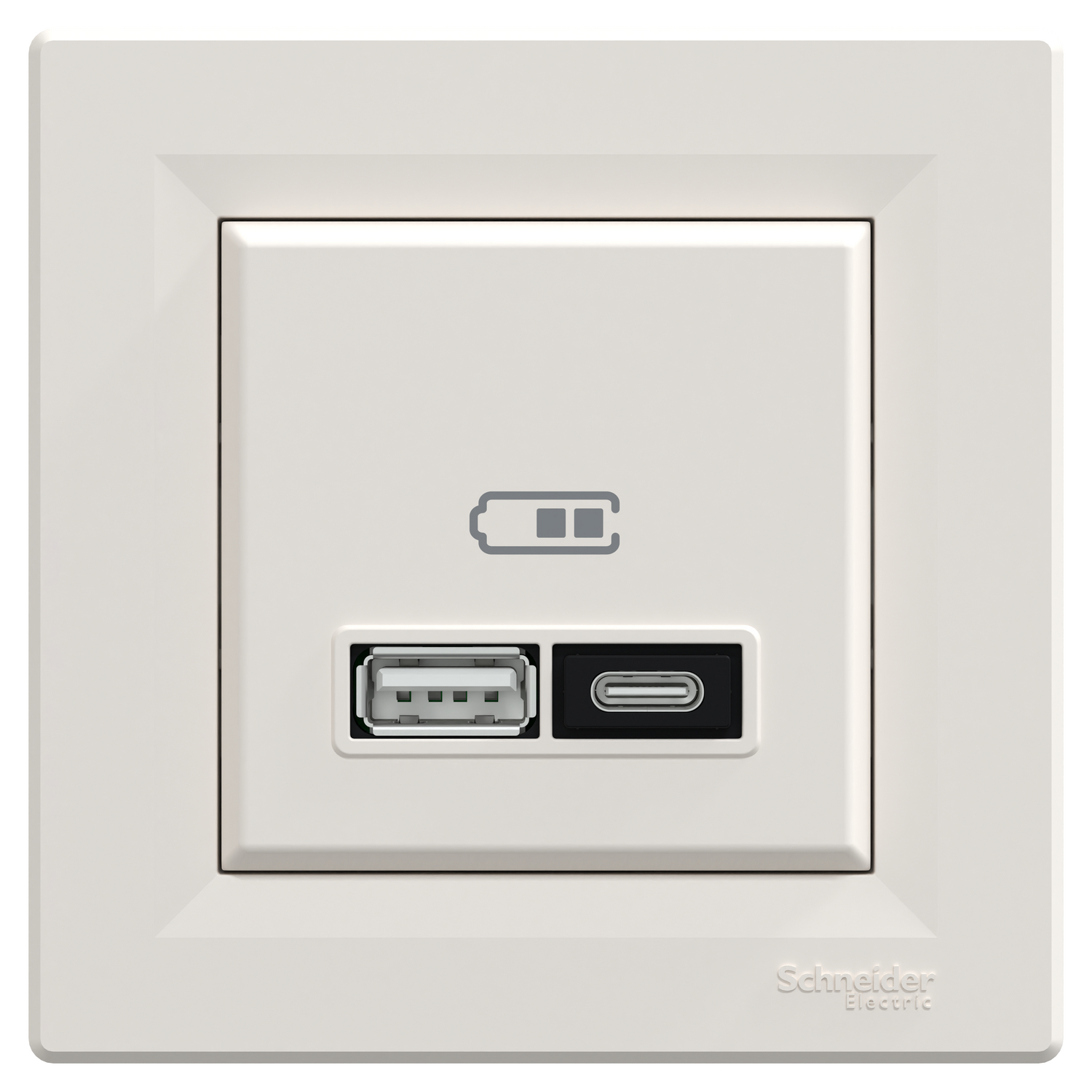

SCHNEIDER ELECTRIC - Asfora dual USB charger type A+C, 21W cream EPH2700523
Asfora Range / Range
Product or component type USB charger
Device presentation Complete product
Device mounting Flush mount
USB power supply type USB type A + C
Color shade Cream
Additional devices
Device application
Charger
Mounting method By screws
Output current 3 A
Integrated connection type
1 USB type A 5 V DC, maximum load current:3 A
1 USB type C <= 20 V DC, maximum load current:3 A
[Ue] rated operational voltage 220...240 V AC +/- 10 % at 50/60 Hz
Maximum power consumption in W 0.05 W
Rated output power 21 W
Load type Power delivery
Finish Glossy
Surface treatment Untreated
Material ABS (acrylonitrile butadiene styrene): front panel
PC (polycarbonate) GF10 FR: housing
Maximum power consumption in W 0.05 W power in W
15 W USB type A 5 V 3 A
18 W USB type A 9 V 2 A
18 W USB type A 12 V 1.5 A
15 W USB type C 5 V 3 A
21 W USB type C 9 V 2.3 A
21 W USB type C 12 V 1.75 A
17 W USB type A + C 5 V 3.4 A
12 W USB type A + C 5 V 2.4 A
Connector type USB A+C
Terminal capacity
2 x 0.75...2 x 2.5 mm² for solid cable/s
2 x 0.75...2 x 2.5 mm² for flexible cable/s
2 x 0.75...2 x 2.5 mm² for stranded cable/s
Service life in hours 30000 h
Protection type
Overload and short circuit protection connection
Output overvoltage protection
Temperature rise protection
Terminal number 2 screw terminals
Wire stripping length 8 mm
Product compatibility Smartphone
#N/A
Tablet PC
Power bank
Digital camera
Mouse
Apple
HW
Samsung
IK protection level IK02
IP protection level IP20
Height 83 mm
Width 83 mm
Depth 43 mm
Connection depth 32 mm
Product weight 0.13 kg
Environment
Standards ETSI EN 301 489-4
Ambient air temperature during operation 0…40 °C
Ambient temperature for storage -5…50 °C
Product certificates EAC
Electrical insulation class Class II
