OMADA - 8-Port 10GE SFP+ L2+ Managed Switch SX3008F
The SX3008F is an 8-port 10 Gbps SFP+ managed L2+ network aggregation switch that provides high-speed 10 Gbps connectivity between fiber or DAC links in server racks, office networks, and data centers. It features 8× 10 Gbps SFP+ slots, a fanless, quiet design, a metal rackmount enclosure, and 160 Gbps switching capacity for fast traffic transfer. The switch supports rich L2/L2+ features such as VLAN, ACL, QoS, IGMP Snooping, Static Routing and ERPS for more efficient and secure network management, as well as centralized management via Omada SDN
Model SX3008F
SFP ports 8
Management type Managed
Ethernet ports 1
Ports 9
PoE No
Fan No
Certificates CE, FCC, RoHS
Operating temperature 0 – 50 ℃
MAC table 32K entries
Body Metal

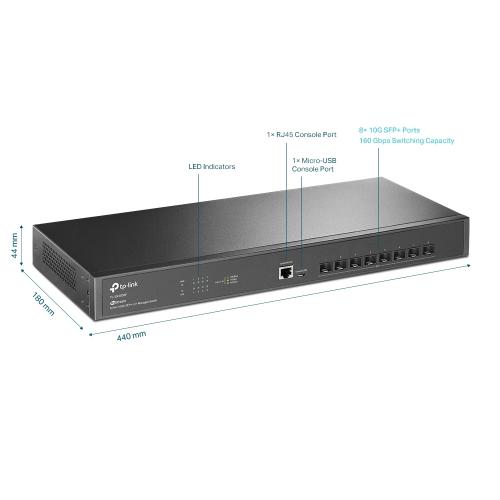

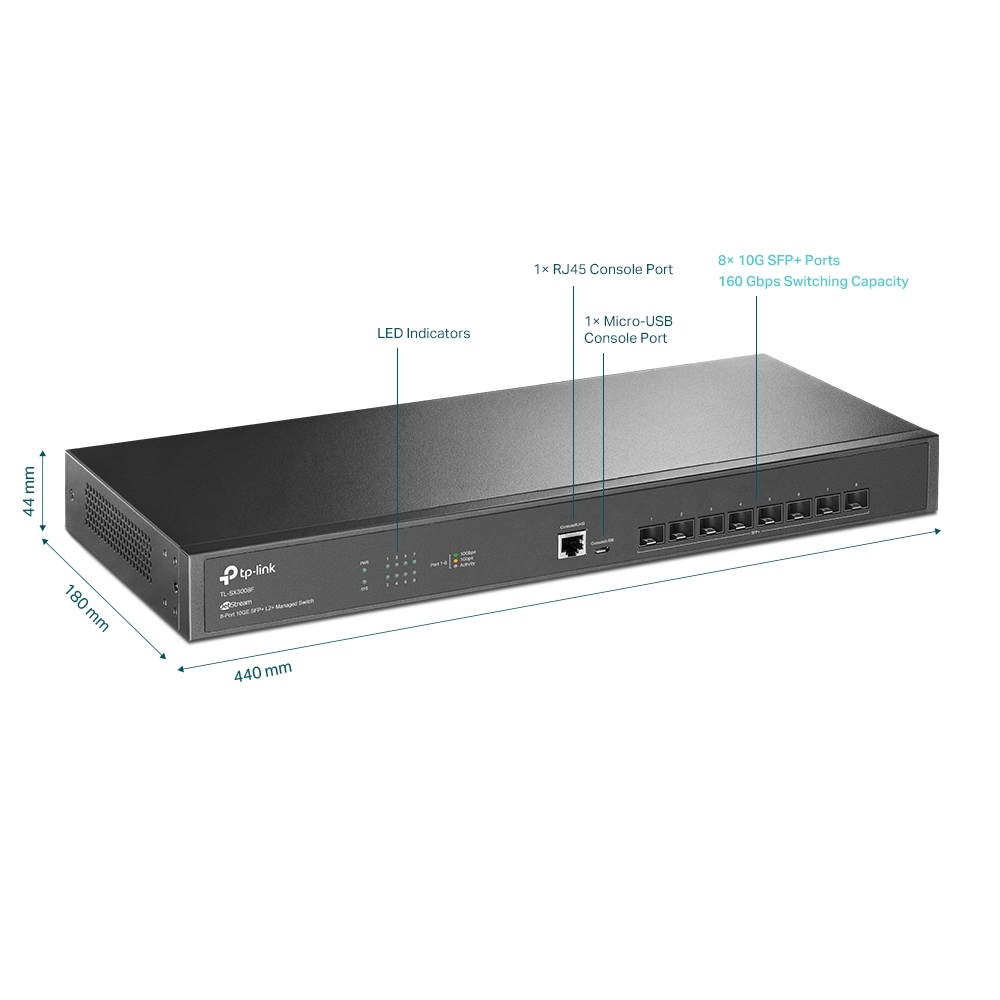

Interface 8× 10GE SFP+ Slots, 1 × RJ45 Console Port, 1 × Micro-USB Console Port
Dimensions 440 × 180 × 44 mm
Switching capacity 160 Gbps
Power supply 100–240V AC
Power consumption 15.46 W
