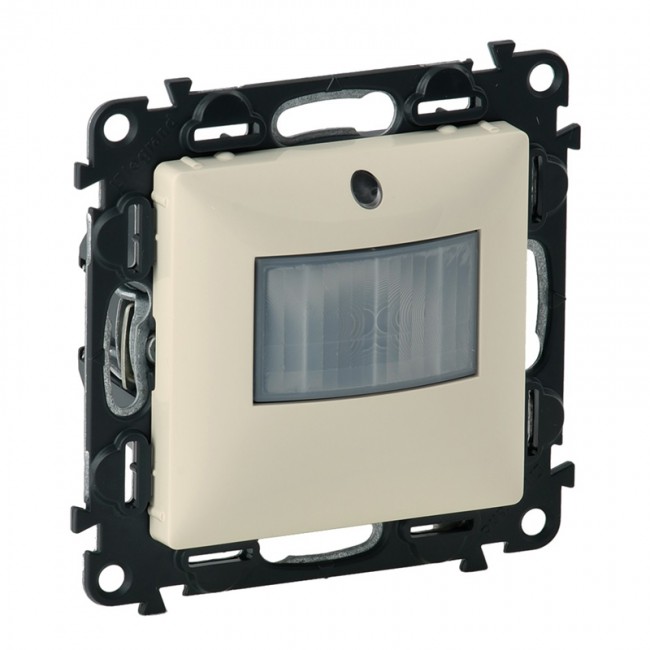

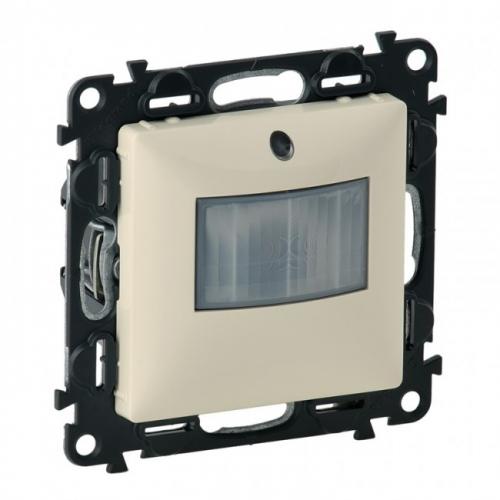

LEGRAND - 7 522 70 Motion sensor without neutral Valena Life - with cover plate -ivory
All sensors are compatible with any type of lamp
Detection field 180°
Detection range 8 m
Integrated self-protection against overloads and short-circuits
Motion sensors without neutral
Accepted power by lamp type:
LEDs 3 W to 100W (If several sensors are installed on the same circuit, the minimum load increases - see data sheet)
Compact fluorescent 3 W to 100 W (If several sensors are installed on the same circuit, the minimum load increases - see data sheet)
LEDs, CFLs, Halogen, fluorescent tubes with ferromagnetic or electronic ballast: 3 VA to 250 VA
230 V halogen, incandescent: 3 W to 250 W
Up to 3 sensors can be connected in parallel
Time delay setting from 10 s to 10 min
Light level threshold setting from 5 lux to 1275 lux
Standby consumption: 0.02 W
