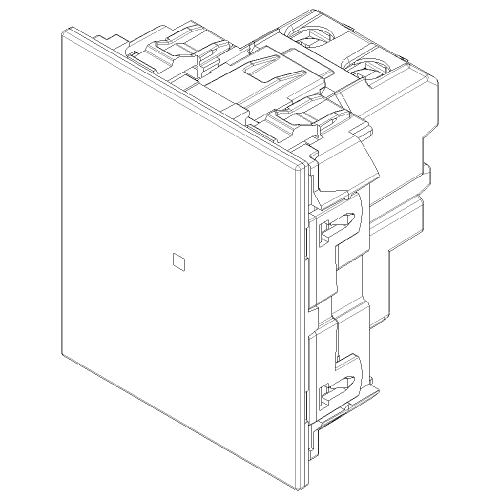

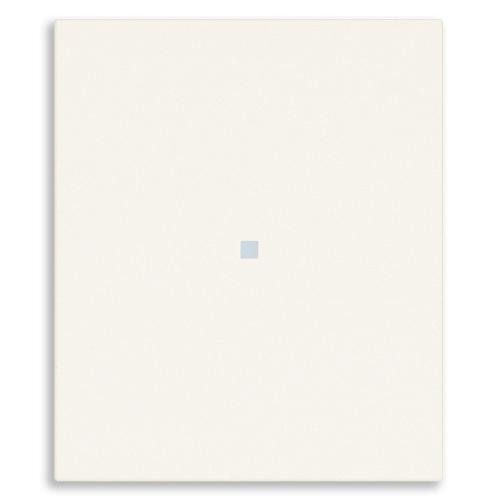

VIMAR - 1P 10AX Axial 2-way switch white, lightable - 30004A.2B
Characteristics
Manufacturer of keys and contacts: Vimar
Modules: 2
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Axial Two Way switch 1-pole
Method of operation
Rocker/button

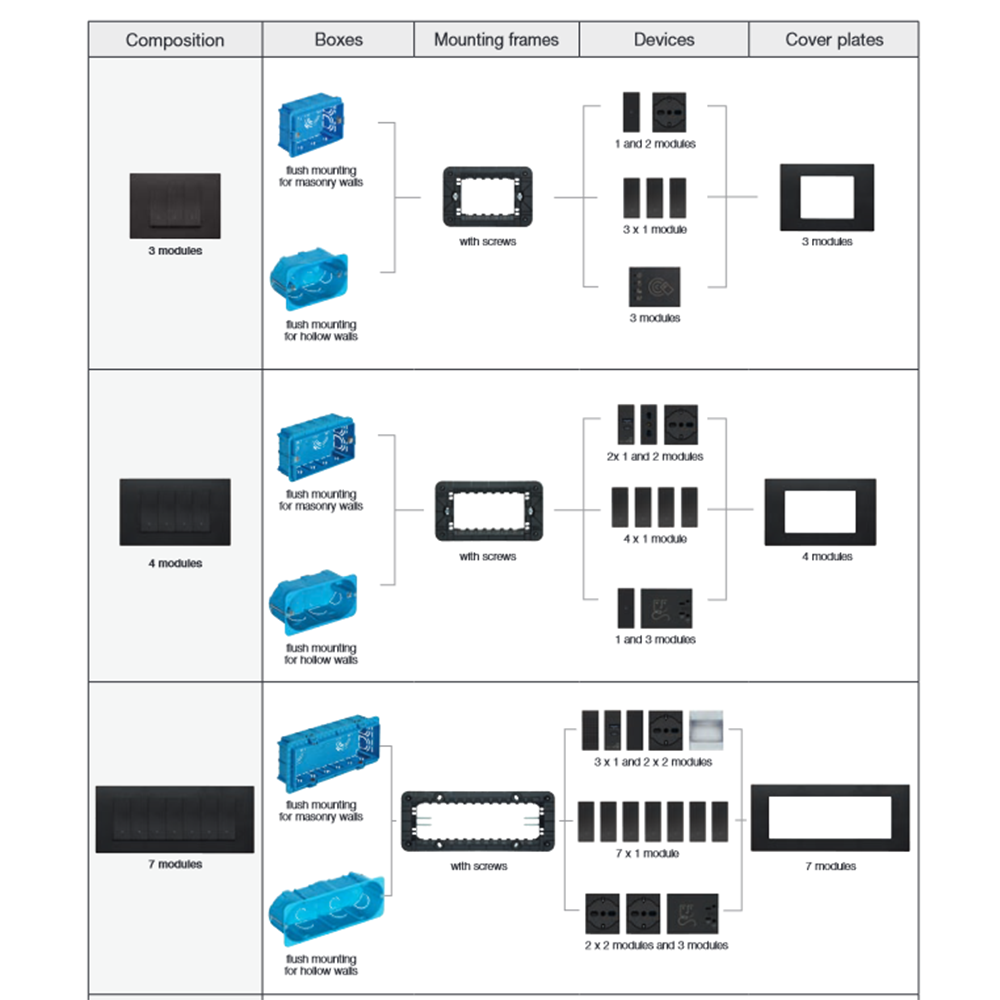

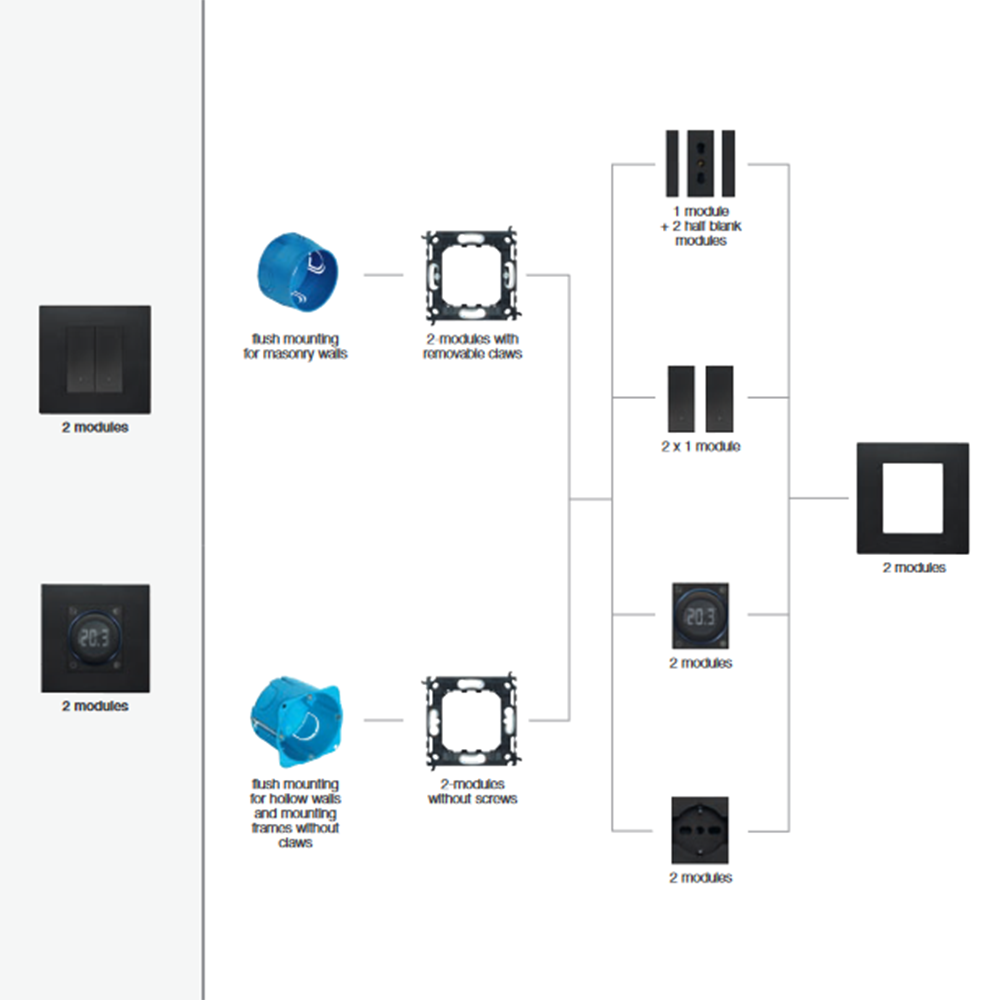

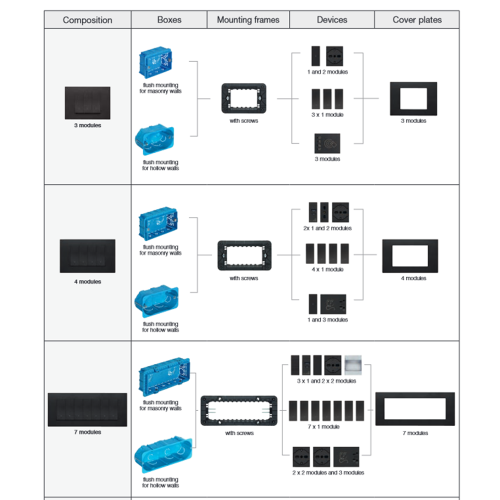

Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1

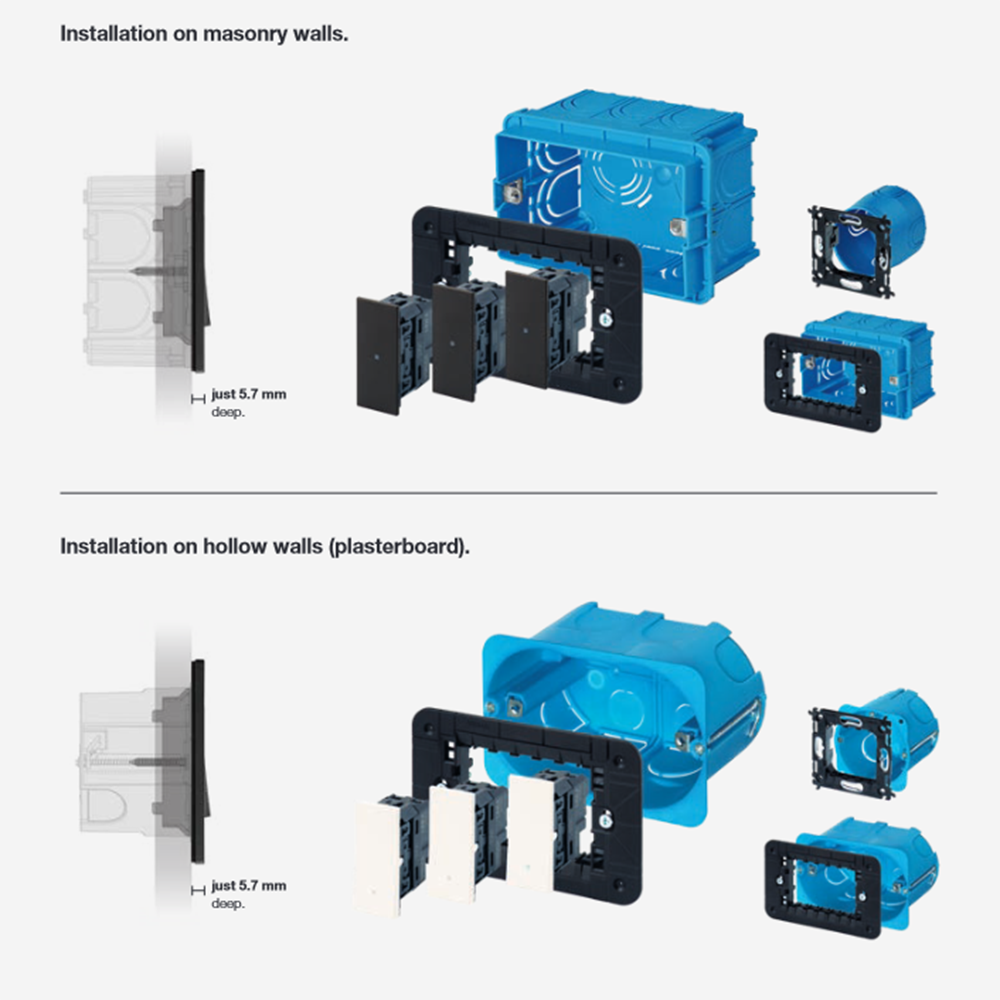

Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
No

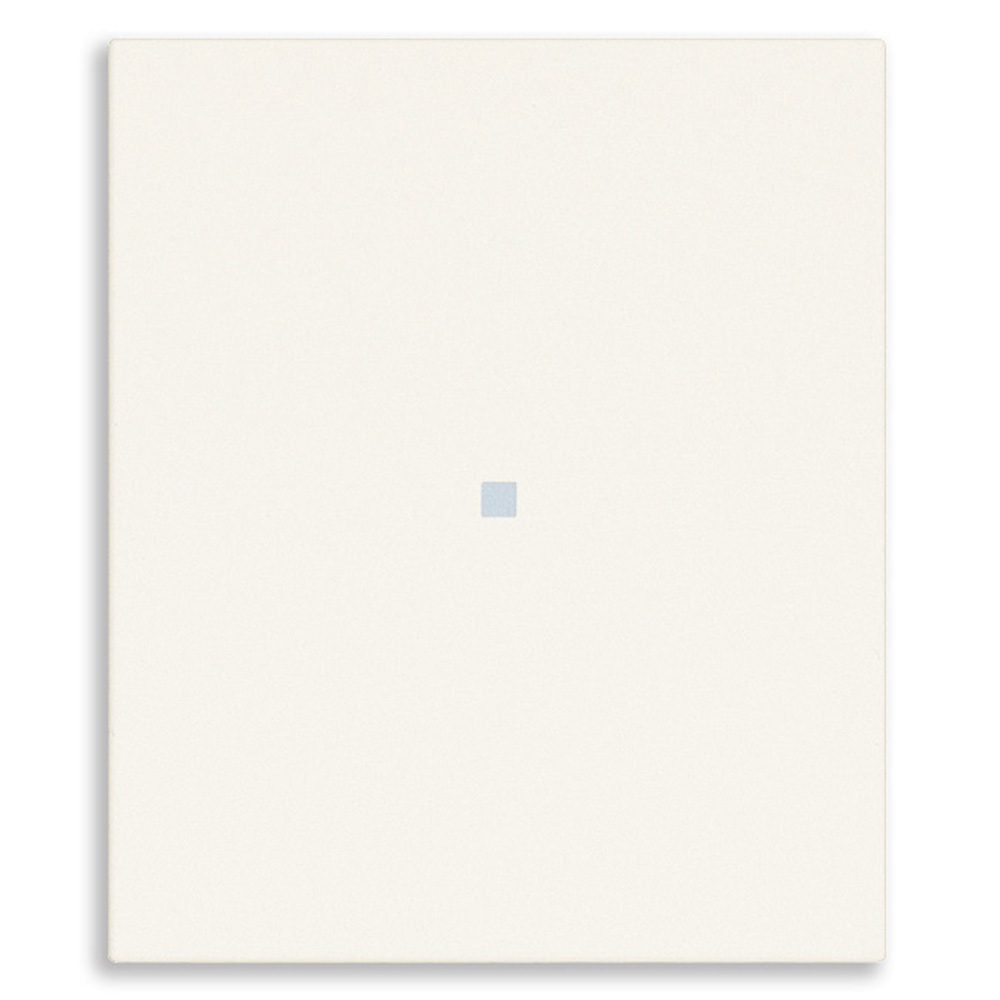

Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No

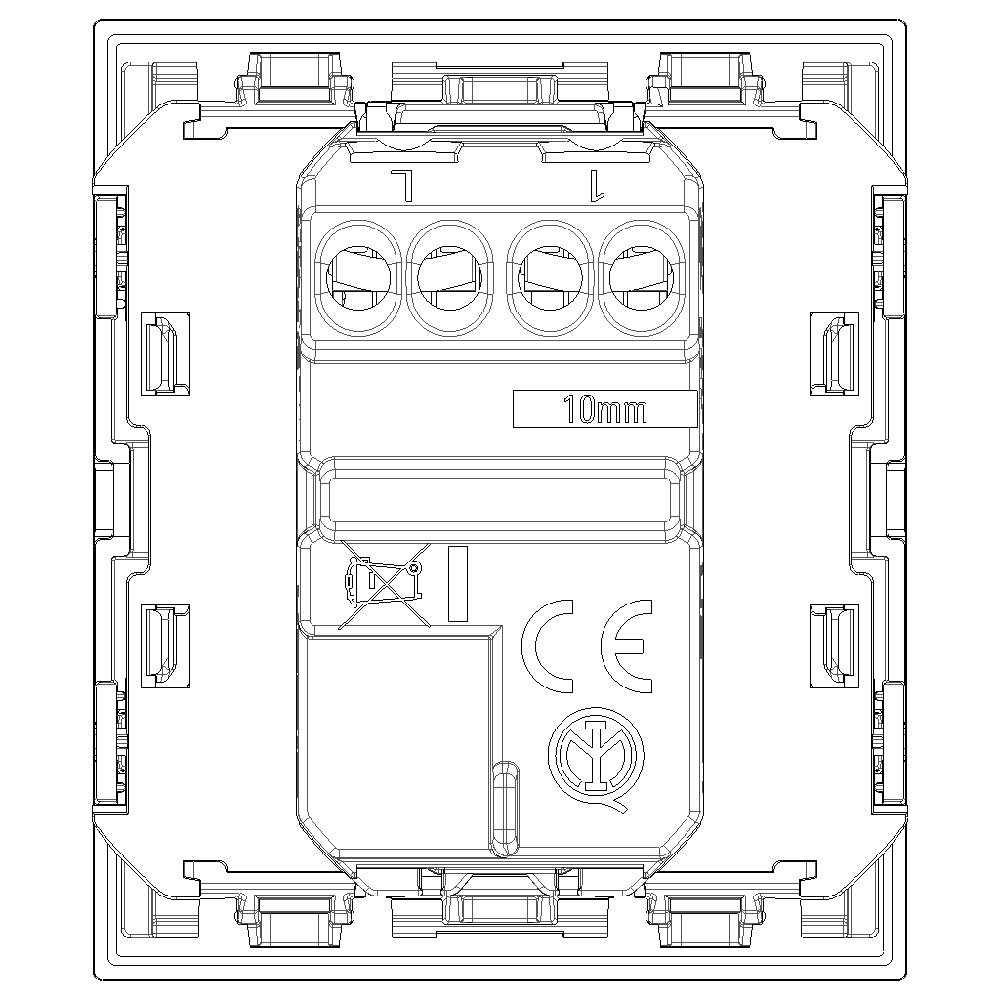

Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
22,30 mm
Device height
52,80 mm
Device depth
39,70 mm
Built-in depth
31,80 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
